Basic Info.
Model NO.
4V210-08 Solenoid Valve
Connection Form
Thread
Type
Direct Acting
Material
Aluminum
Pressure
Ordinary Pressure
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC Solenoid Valve
Usage
Safety
Application
Industrial Usage, Water Industrial Usage, Household Usage
Jiont Size
1/8 to 1/4
Oriffice
1.2mm
Voltage
AC110V 220V DC12V 24V
Heat Resistant Grade
B
Protective Class
IP65(DIN40050)
Certification
CE ISO
Transport Package
PP
Specification
PC
Trademark
Smart
Origin
China
HS Code
84818040
Production Capacity
500000PCS/Year
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
Pneumatic Control Element 4V210-08 Two-Position Five-Way Valve 5/2 Port Air Polit Type Aluminum Solenoid Valve
Media: Clean Air
Temperature: -5 C~60 C
Pressure: 1.2Mpa
Orifice (mm): 1.2mm
Seal: NBR
Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test

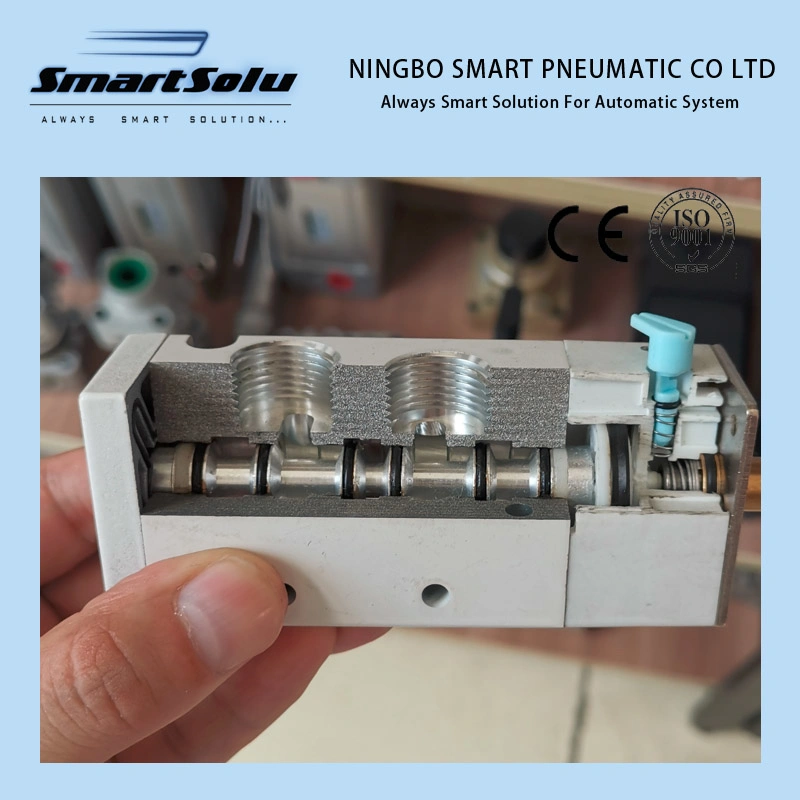

4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.
Specificaitons of 4v Series Solenoid Valve (2 Position 5 port single control)
Media: Clean Air
Temperature: -5 C~60 C
Pressure: 1.2Mpa
Orifice (mm): 1.2mm
Seal: NBR
| Model | 4V210-08 | |
| Working Medium | Clean Air (40um filteration) | |
| Acting Type | Guid Type | |
| Jiont Size | Import=1/4 Export=1/4 Exhause=1/8 | |
Ways | 2 Position 5 Port Single Control | |
Working Temperature | -5~60C | |
Oriffice | 1.2mm | |
Woking Pressure | 0.15~0.9MPa | |
Coil Type | Din Type,Flying Leads | |
Max Acting Frequency | 5Time/mm | |
Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test
4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2", while 5/2 types have single solenoid type and double solenoid type, Single solenlid valves is repositioned by the spring, and the double solenoid vavle is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.
Specificaitons of 4v Series Solenoid Valve (2 Position 5 port single control)
Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
| Ways | 2 Position 5 Port | ||||||
| Acting Type | Direct Acting | ||||||
| Joint Size | Import=M5 Export=M5 Exhaust=M5 | Import=1/8 Export=1/8 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/8 | Import=1/4 Export=1/4 Exhaust=1/4 | Import=3/8 Export=3/8 Exhaust=1/4 | Import=1/2 Export=1/2 Exhaust=1/2 | |
| Sectional Area | 5.5mm2(CV=0.31) | 12mm2(CV=0.67) | 14mm2(CV=0.78) | 16mm2(CV=0.89) | 25mm2(CV=1.39) | 30mm2(CV=1.67) | 50mm2(CV=2.79) |
| Working Pressure | 0.15~0.9Mpa | ||||||
| Guarantee Pressure | 1.2Mpa | ||||||
| Working Temperature | -5~60°C | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistant Grade | B | ||||||
| Protective Class | IP65(DIN40050) | ||||||
| Coil Type | DIN Type,Flying Leads | ||||||
| Max Acting Frequency | 5 Times/s | 4 Times/s | |||||

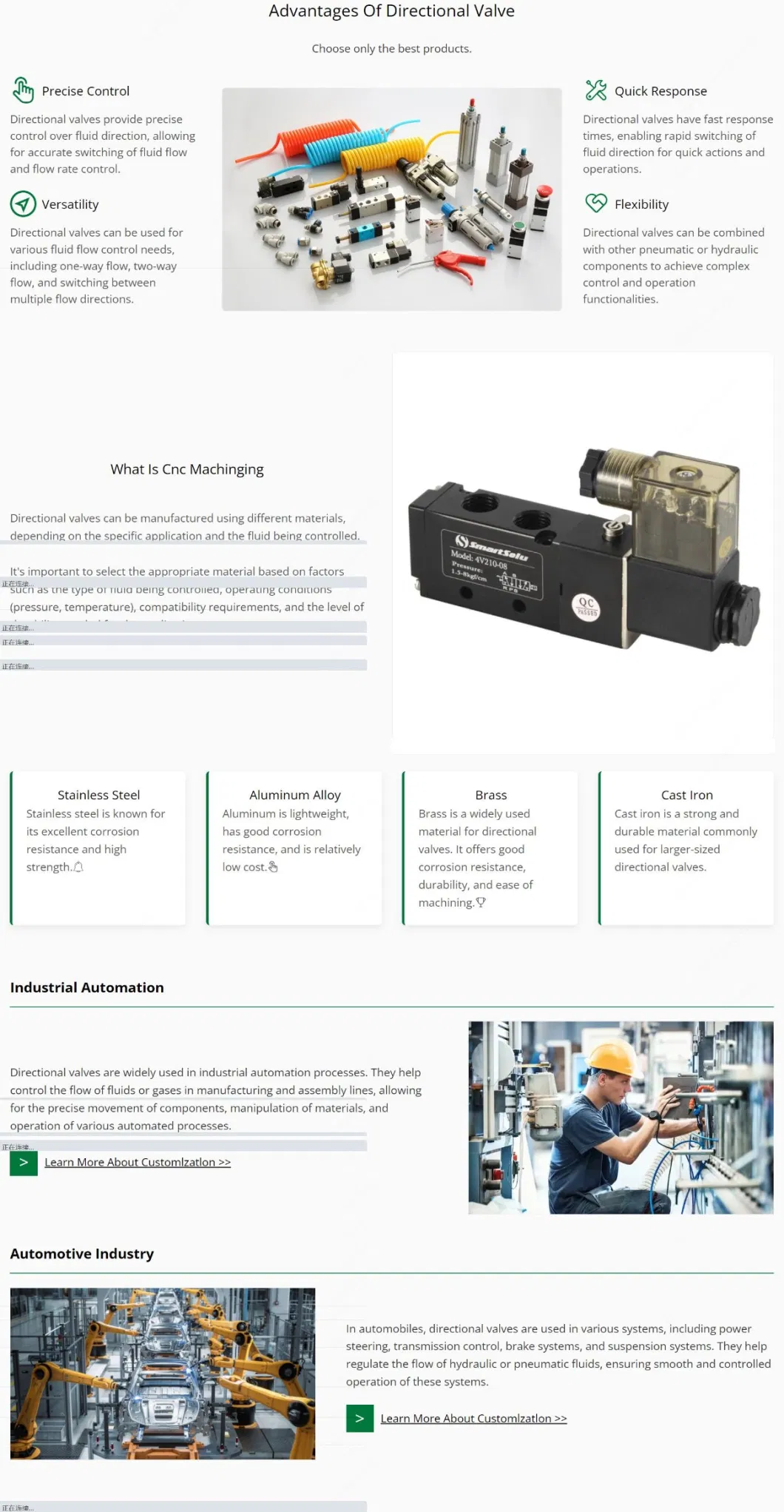

What Is Directional Valve?
One of the most fundamental and important components of any fluid power system is the directional-control valve. As the name suggests, directional control valves are used to direct the flow of fluid through the system. Directional control valves control when and where the fluid in the system flows.
