Basic Info.
Model NO.
EP-2600
Material
Cast Steel
Name
Differential Pressure Control Valve
Key
Pneumatic Control Valve
Customized Support
OEM, ODM
Application
Industrial Usage
Type1
Control Regulating Valve
Transport Package
Wooden Crate
Specification
Customized
Trademark
Customized
Origin
China
Production Capacity
5000PCS/Year
Product Description

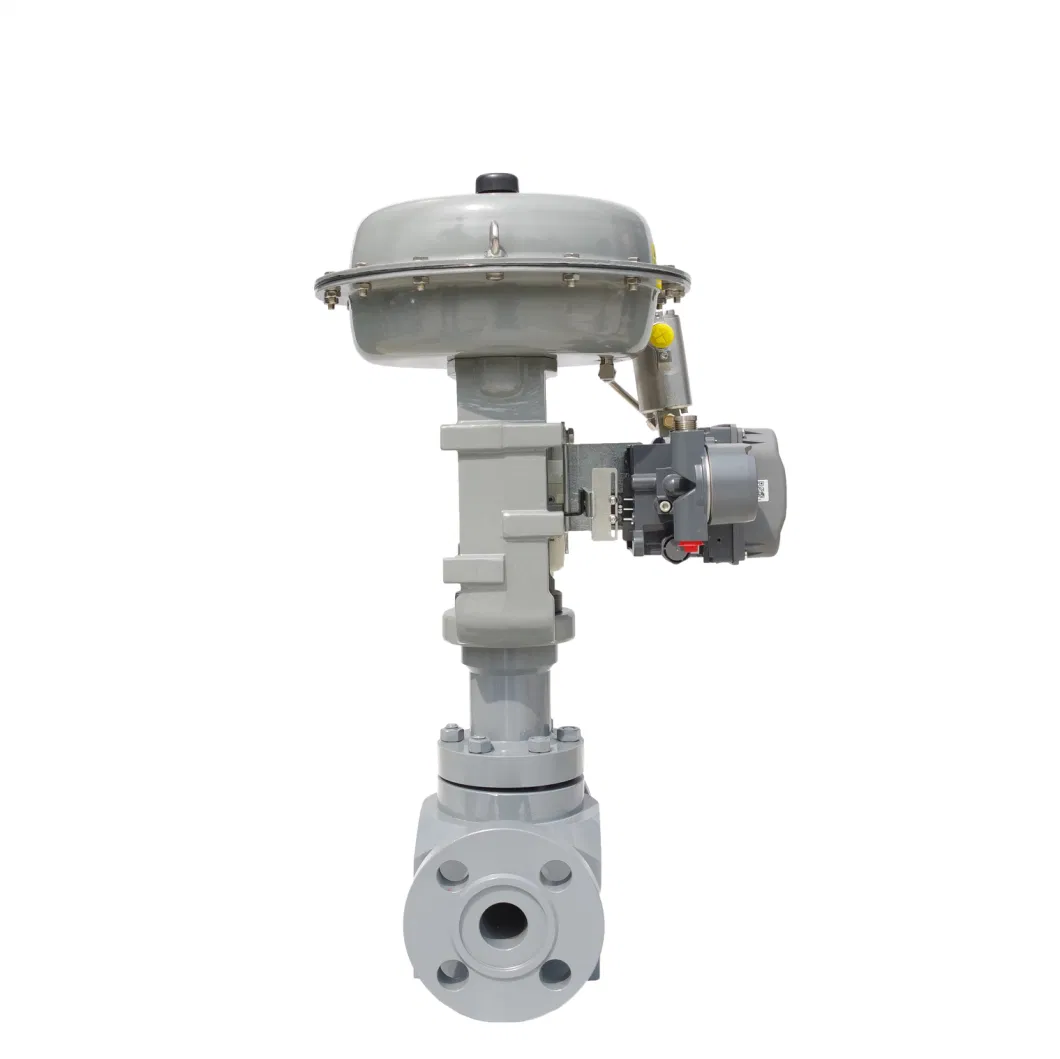

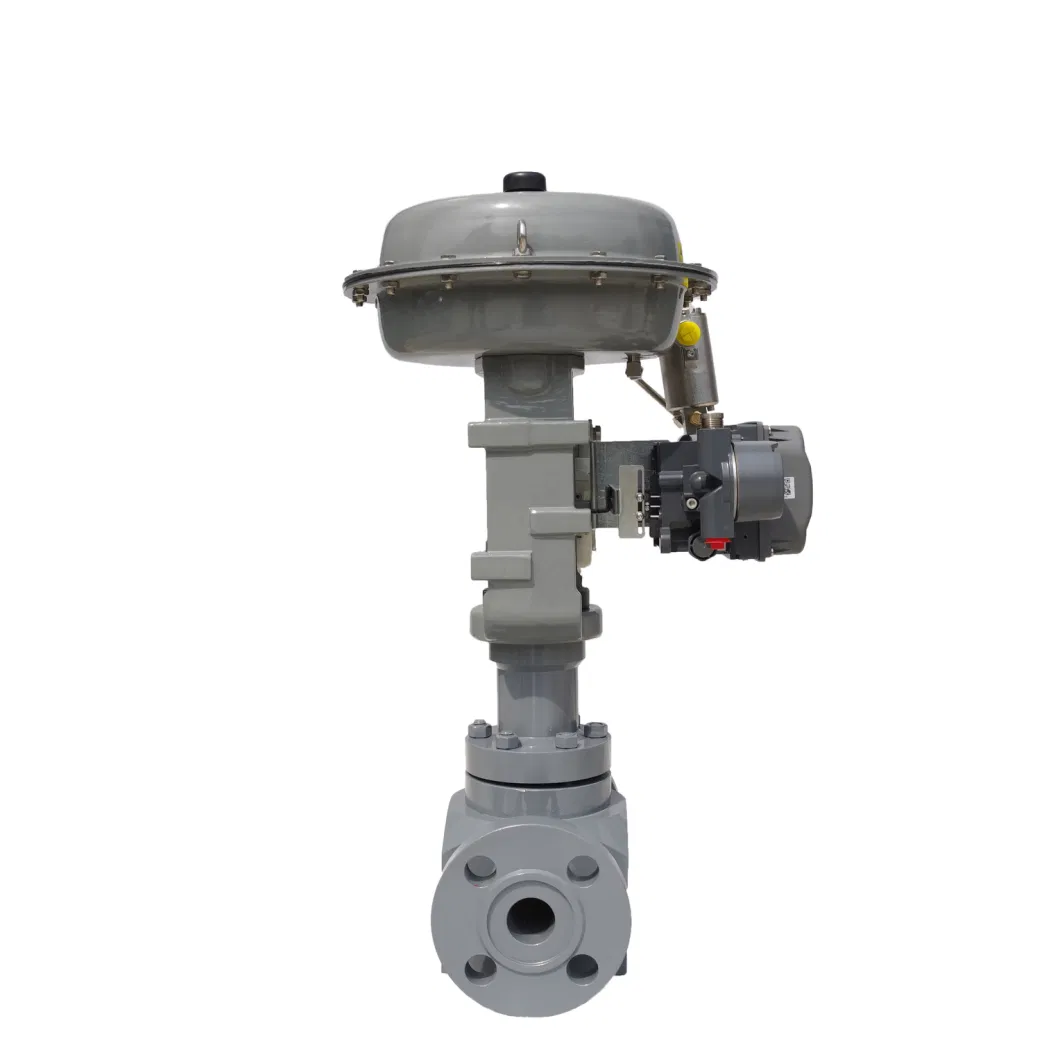

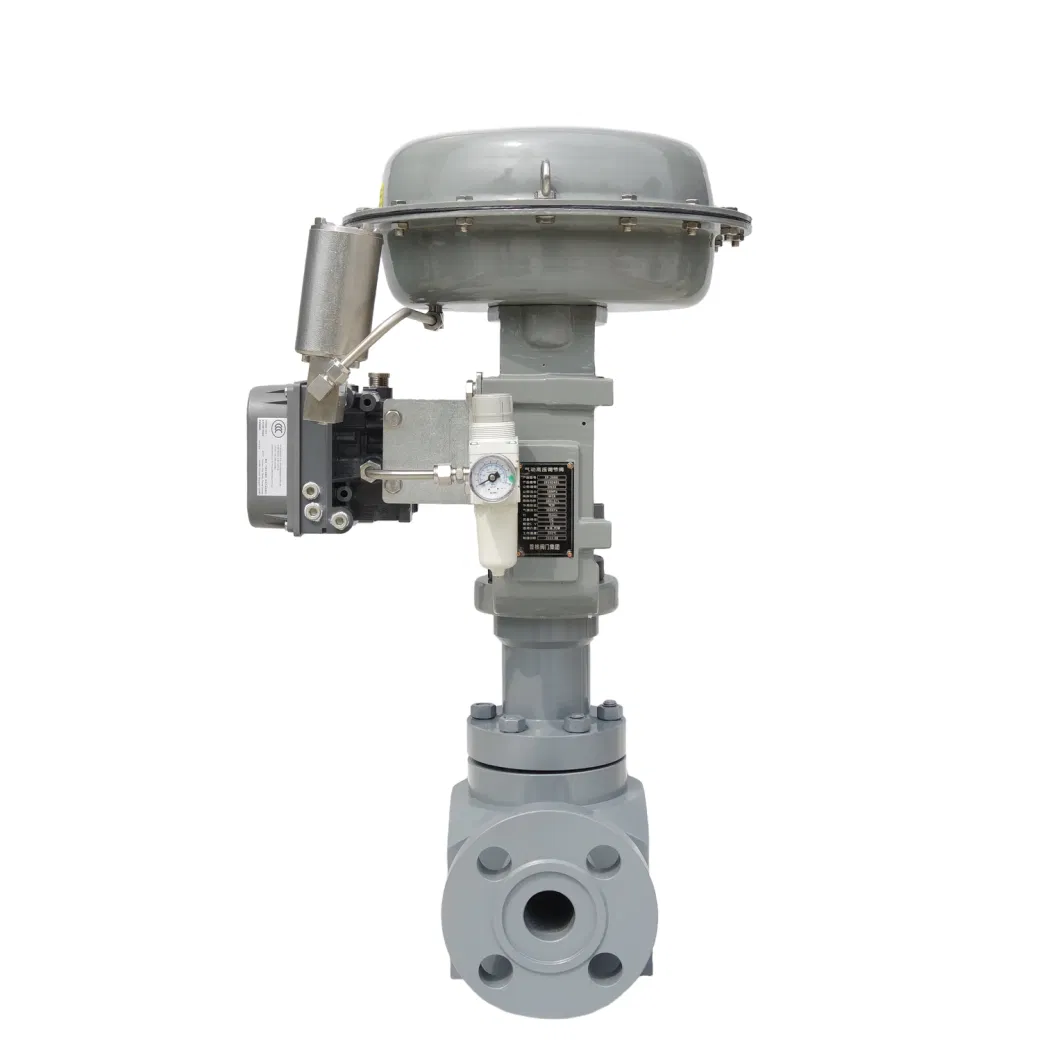

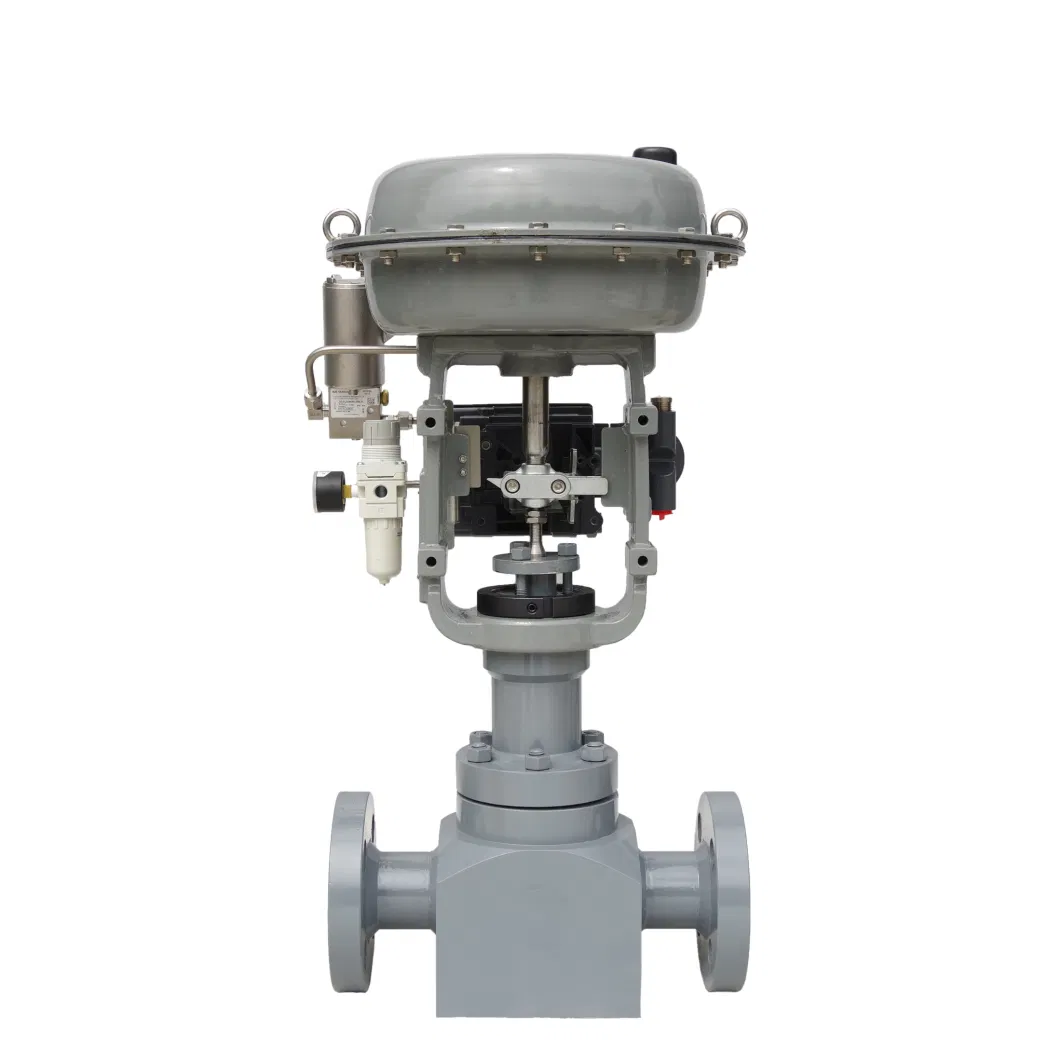

Pneumatic High Pressure Differential Regulating Control Valve with Low Noise
Main technical parameters | Nominal Diameter DN | 40 | 50 | 80 | 100 | 150 | 200 | ||||||||||||||
| Valve seat diameter d | 25 | 32 | 40 | 32 | 40 | 50 | 50 | 65 | 80 | 65 | 80 | 100 | 100 | 125 | 150 | 125 | 150 | 200 | ||
| Rated CV value | Equal percentage | 10,20MPa | 12 | 17 | 25 | 17 | 25 | 52 | 52 | 78 | 110 | 78 | 110 | 180 | 180 | 270 | 375 | 270 | 375 | 650 |
| 32MPa | - | 12 | 12 | 12 | 17 | 31 | 31 | 52 | 78 | 52 | 78 | 125 | 125 | 180 | 270 | 180 | 270 | 470 | ||
| line property | 10,20MPa | 12 | 20 | 30 | 20 | 30 | 62 | 62 | 90 | 135 | 90 | 135 | 210 | 210 | 330 | 480 | 330 | 485 | 700 | |
| 32MPa | - | 12 | 20 | 12 | 20 | 43 | 43 | 62 | 90 | 62 | 90 | 150 | 150 | 210 | 330 | 210 | 330 | 520 | ||
| Rated stroke mm | 25 | 40 | 60 | |||||||||||||||||
| nominal pressure | PN10\20\32MPa;ANSI900\1500\2500 | |||||||||||||||||||
| media temperature | Normal temperature type (P):-20~+230ºC;Medium temperature type (EI):+230~+566ºC | |||||||||||||||||||
| Connection type | Flange connection, welding, etc | |||||||||||||||||||
| Flange standard | JB79-59,GB9119-2000;ANSI B16.5-1981 | |||||||||||||||||||
| Flow characteristics | Equal percentage(%CC), linear characteristic(LCC) | |||||||||||||||||||
| enforcement body | ZH self type multi spring membrane type, spring range: 40-200, 80-240Kpa | |||||||||||||||||||
| air supply pressure | According to the spring range, it is 300 and 400Kpa, and the air source interface is (RC1/4´´), M16 · 1.5 | |||||||||||||||||||
| Valve action form | Use the positive acting ZHA type to achieve the "air -close" valve (B), or use the reverse acting ZHB type to achieve the "air -open" valve (K) | |||||||||||||||||||
| intrinsic error | With locator:+1.0% FS; Without locator: ±5% FS | |||||||||||||||||||
| return difference | With locator:<1.0% FS; Without locator: <3% FS | |||||||||||||||||||
| leakage rate | Metal sealed<10-3. CV 1/h in accordance with ANSI B16.104-1976 Class III standard | |||||||||||||||||||
| Adjustable range | 50:1 | |||||||||||||||||||
| optional accessories | Valve positioner, air filter pressure reducer, solenoid valve, valve transmitter, handwheel mechanism, etc. (selected according to order requirements) | |||||||||||||||||||
Main component materials
| Valve body material | ZG230-450:ZG1Cr18Ni9:ZG1Cr17Ni12Mo2Ti:ZG316L |
| Valve core sleeve material | 1Cr18Ni9;1Cr18Ni12Mo2Ti;17-4PH;9Cr18;316L;Surfacing Stellite and corrosion-resistant hard alloy |
| Valve stem (shaft) | 2Cr13;1Cr18Ni9Ti;1Cr17Ni12Mo2Ti |
| Filler | RTFE/Flexible graphite |
| On-off form | Type of actuator | Spring range KPa | air pressure KPa | Attachment required | Nominal diameter (valve seat diameter)mm | |||||
| 40 | 50 | 80 | 100 | 150 | 200 | |||||
| air to close | ZHA-3 | 40-200 80-240 | 300 400 | P P | 15.3 30.6 | 11.6 23.3 | 7.8 15.6 | |||
| ZHA-4 | 40-200 80-240 | 300 400 | P P | 26.3 42 | 20.1 40 | 13.5 36 | 10.1 20.2 | 6.7 13.5 | 5.0 10.1 | |
| ZHA-5 | 40-200 80-240 | 300 400 | P P | 16 30 | 10 20 | 9 18 | ||||
| air to open | ZHA-3 | 40-200 80-240 | 300 400 | P P | 7.8 19 | 6.6 17.5 | 6.6 17.5 | |||
| ZHA-4 | 40-200 80-240 | 300 400 | P P | 10.1 21.1 | 8.8 20 | 8.8 20 | 4.1 8.2 | 7.5 15.9 | 2.0 4.0 | |
| ZHA-5 | 40-200 80-240 | 300 400 | P P | 7.8 16.8 | 4.1 10.4 | 3.4 9.2 | ||||

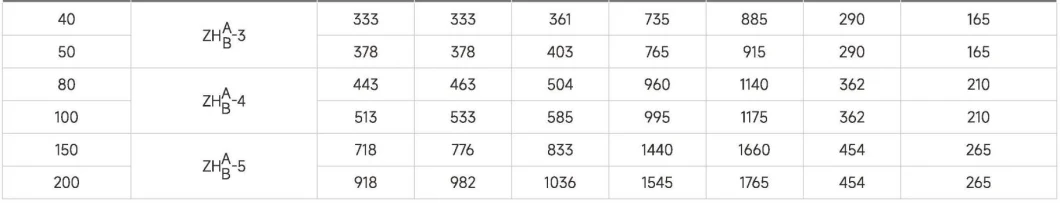

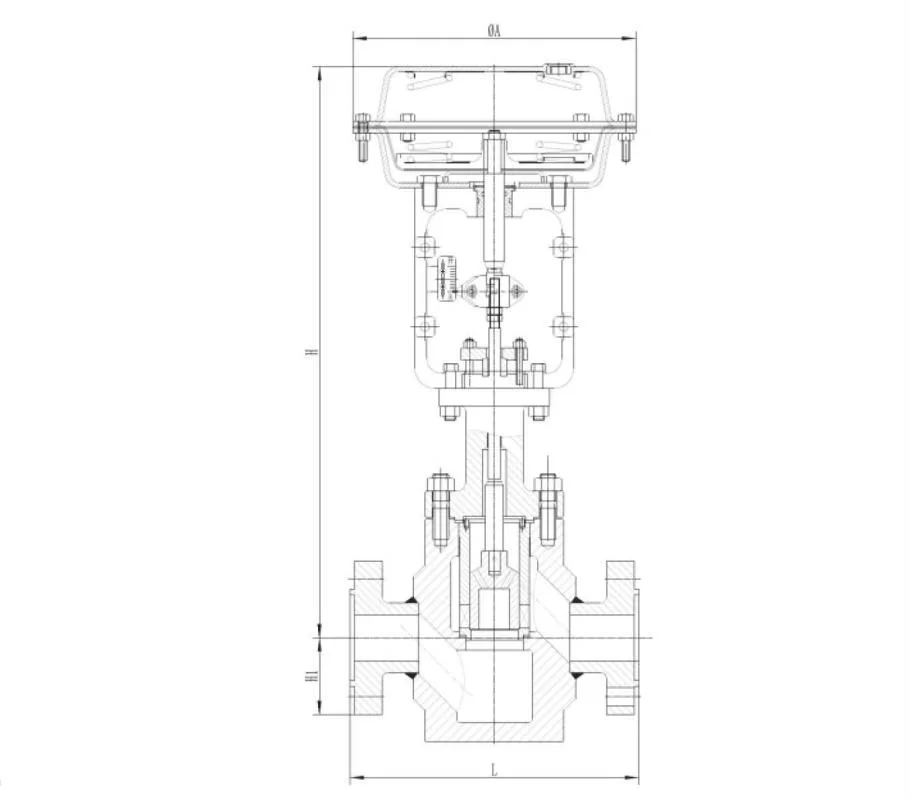

Main external dimensions and connection dimensions
| Nominal Diameter | Type of actuator | L | H | øB | Elevated with handwheel | |||
| PN100 | PN200 | PN320 | Normal temperature type | Moderate temperature type | ||||
The EP-2600 pneumatic high pressure differential regulating valve is a pressure balanced regulating valve. It is composed of a multi spring diaphragm actuator and a pressure balanced valve core adjustment mechanism. The valve body structure is compact, the fluid channel is S-shaped, and the pressure drop loss is small, the flow rate is large, and the adjustable range is wide. Large output force, suitable for high-pressure fluids, low noise requirements, and automatic regulation and control situations.
Comply with GB/T4213-92 standards, and the leakage rate also complies with ANSIB16 and Prevention 104 standards.
Comply with GB/T4213-92 standards, and the leakage rate also complies with ANSIB16 and Prevention 104 standards.
