Basic Info.
Model NO.
RD1000/K/F RD1600/K/F
Temperature
Ordinary Temperature, Ordinary Temperature
Connection
Flange, Flange
Material
Alloy, Stainless Steel
Place of Origin
Tianjin, China (Mainland)
Output Torque
1000nm 1600nm
Time
30s/40s
Brand Name
Freya
Control Modal
Intelligent Type
Phase Code
K/F
Frequency
50Hz
Installation Mode
Foot-Plate Mounted/Direct Mounted
Transport Package
Wooden Case
Specification
53kg 108kg
Trademark
Freya
Origin
China
HS Code
850151
Production Capacity
1000 Piece/Year
Product Description

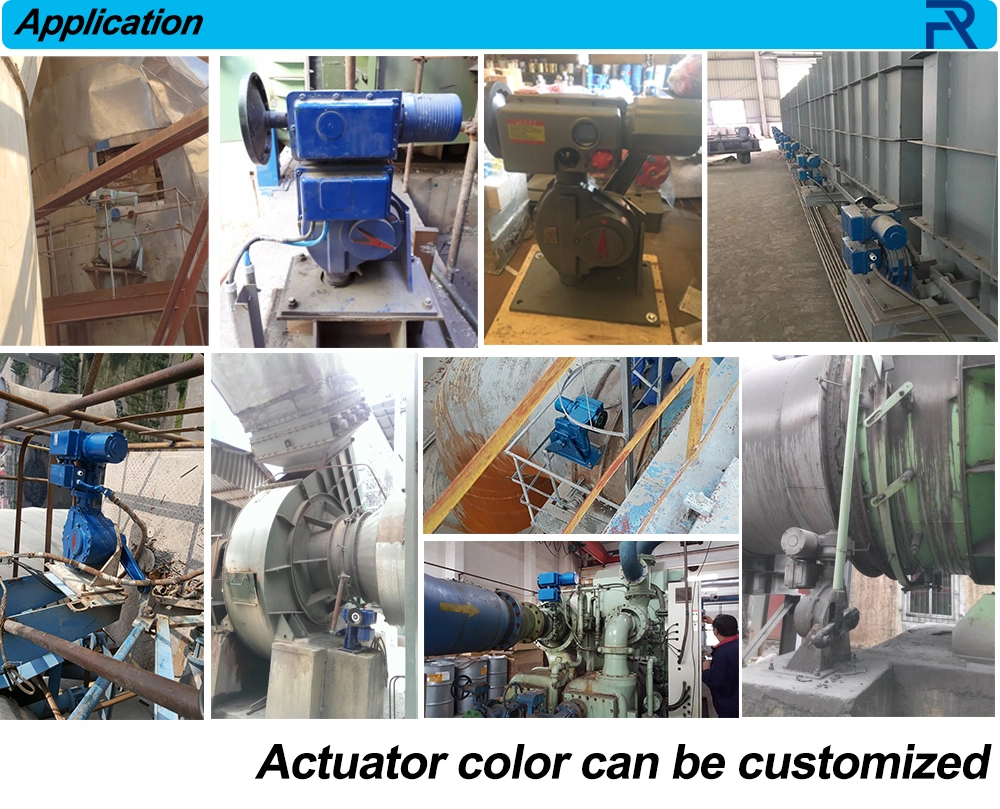

SD non-intrusive intelligent electric actuator is the execution unit in industrial automation instrument, it receives from the regulator, PLC, DCS control signal from the computer, such as the completion of automatic adjustment, is indispensable to automatic control system for main equipment. It is widely used in power station, metallurgy, petroleum, chemical mine, light industry, pharmacy, gas power, building materials, transportation and city subway, water supply, sewage treatment and other industries.
Type | Output torque (Nm) | Full travel time (s) | Direct mounting | Foot-plate mounting | Motor data | weight (Kg) | ||||
| Flang code ISO5210 | Shaft hole diameter mm | Spherical hinge model | phase code | Rated power (KW) | Rated Current A | Starting Current A | ||||
| OA-10 | 100 | 30 | F07 | Φ20 | SQJ-10 | K/F | 0.025 | 0.2 | 1 | 18 |
| OA-15 | 150 | 30 | F07 | Φ20 | SQJ-10 | K/F | 0.025 | 0.4 | 2 | 18 |
| AS-25 | 250 | 30 | F10 | Φ28 | SQJ-25 | K/F | 0.065 | 0.5 | 2.5 | 26 |
| BS-60 | 600 | 30 | F14 | Φ35 | SQJ-60 | K/F | 0.16 | 0.6 | 3 | 45 |
| A+RS100 | 1000 | 30 | F12 | Φ45 | SQJ-100 | K/F | 0.25 | 0.7 | 3.5 | 53 |
| B+RS160 | 1600 | 30 | F14 | Φ60 | SQJ-160 | K/F | 0.4 | 1.5 | 7.5 | 108 |
| 40 | K/F | 0.25 | 0.7 | 3.5 | ||||||
| B+RS250 | 2500 | 30 | F16 | Φ70 | SQJ-250 | K/F | 0.65 | 2.6 | 13 | 135 |
| 40 | K/F | 0.4 | 1.1 | 5.5 | ||||||
| B+RS400 | 4000 | 28 | F16 | Φ70 | SQJ-400 | K/F | 1 | 3.5 | 17.5 | 150 |
| 40 | 0.65 | 2.6 | 13 | |||||||
| 65 | K/F | 0.4 | 1.1 | 5.5 | ||||||
| B+RS600 | 6000 | 40 | F16 | Φ75 | SQJ-600 | K/F | 1 | 3.5 | 17.5 | 160 |
| 65 | 0.65 | 2.6 | 13 | |||||||
| 105 | K/F | 0.4 | 1.1 | 5.5 | ||||||
| B+RS800 | 8000 | 105 | F25 | Φ75 | SQJ-800 | K/F | 1 | 1.5 | 7.5 | 225 |
| B+RS1000 | 10000 | 130 | F25 | Φ85 | SQJ-1000 | K/F | ||||
| B+RS1200 | 12000 | 130 | F25 | Φ85 | SQJ-1200 | K/F | ||||
| B+RS1600 | 16000 | 130 | F25 | Φ105 | SQJ-1600 | F | 1.2 | 2.6 | 13 | 260 |
| B+RS2000 | 20000 | 150 | F25 | Φ105 | SQJ-2000 | F | ||||
| B+RS2600 | 26000 | 150 | F25 | Φ105 | SQJ-2600 | F | ||||
| B+RS3000 | 30000 | 150 | F25 | Φ105 | SQJ-3000 | F | ||||
* Single phase:220V±10% 50Hz±1Hz
Three phase:380V±10% 50Hz±1Hz
On site operation unitThe on-site magnetic knob switch can switch between on-site and remote control status to easily control and set the actuator when it is completely isolated from the electrical box.
Human-machine interface LCD display window
Display the valve position, torque and functional status of the actuator in Chinese/English, numbers, graphics, etc.

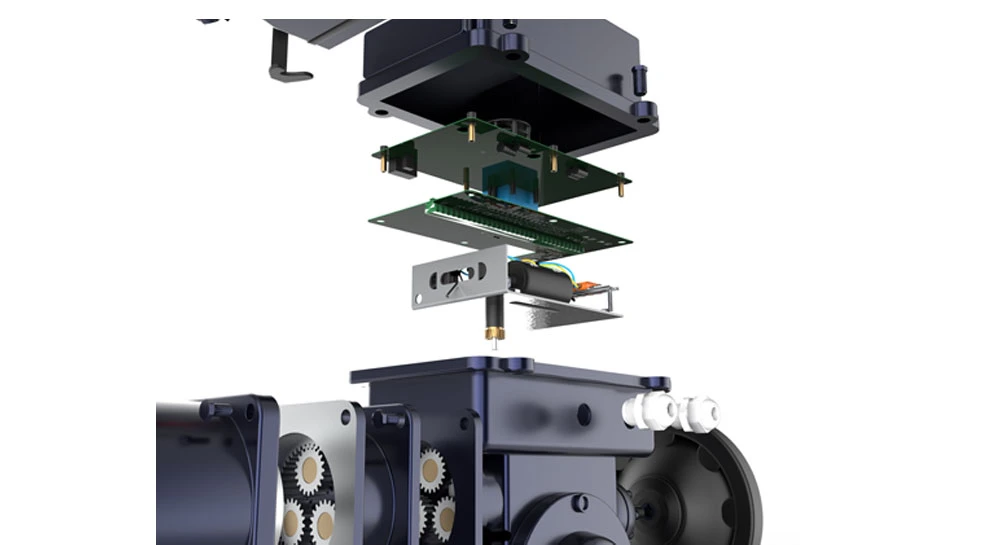

Powerful integrated circuit
Use fewer electronic components and complex electronic wiring to ensure that the electric actuator has a high degree of electronic control reliability. The absolute encoder has a set of accelerating gears connected to the actuator drive shaft, and the stroke can be set automatically without a micro switch.
Motor
It has high starting torque, low moment of inertia, small starting current, and good servo characteristics.
Output shaft
With a spline design, the position of the output wall can be adjusted arbitrarily according to the opening and closing degree and position of the valve, which is convenient for operation.
1.The man-machine interface with LCD display and various symbols, numbers and texts can be used for parameter setting, debugging and fault diagnosis on site.
2.Operating data recording function: convenient parameter setting, no need to open the case, the electric actuator can be parameterized and operated on-site through the manual operaton.
3.The input three-phase power supply can automatically correct the phase sequence.
4.When a fault occurs, it stops at the original position and gives a fault status signal.
5.Alarm contacts can be output and valve positions can be displayed.
Q1.How about your price?
Although high quality but the price is vary favorable.
Q2. What is your MOQ?A: 1 PC.
Q3. What is the delivery time?
A: It is about 1-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance,etc.
Q5. Do you have products in stock?
A: Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
