Basic Info.
Model NO.
CA2
Double-Acting Cylinder Type
Common Cylinder
Special Cylinder Type
Number of Cylinders
Combination Cylinder Type
Pressurized Cylinder
Member Type
Diamond Member
Business Type
Manufacturer/Factory
R&D Capacity
OEM,ODM,Own Brand
City
Ningbo
Transport Package
Wooden Case, Carton, Pallet
Specification
Aluminium
Trademark
SmartSolu
Origin
China
HS Code
8412310090
Production Capacity
100000PCS/Year
Product Description

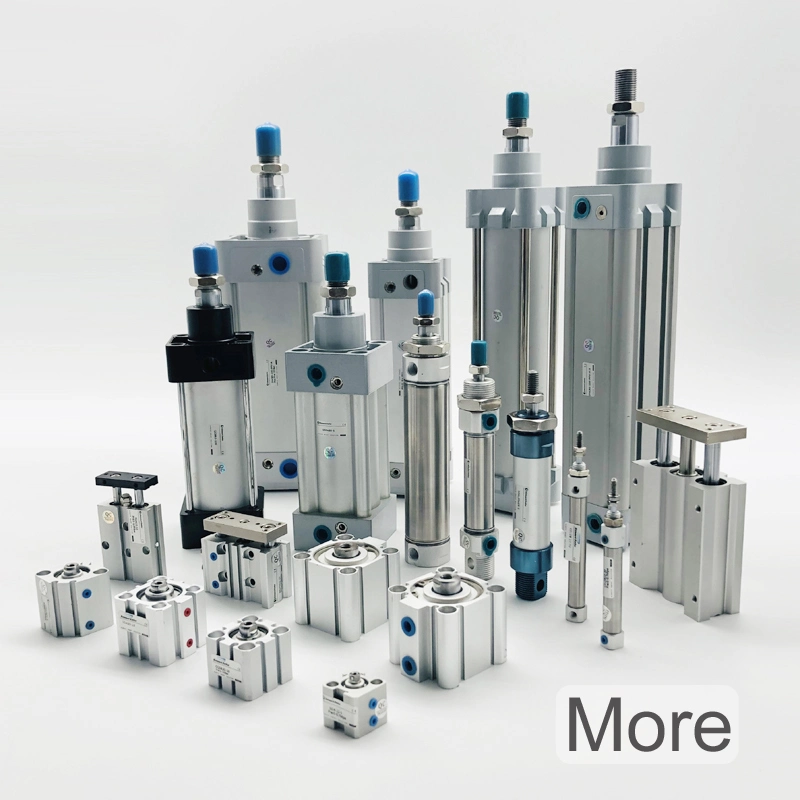

SmartSolu now has 78 kinds of standard pneumatic cylinders, some of them do not show here, just tell us the model number or drawing, we will send you the quotation ASAP. BTW, we can offer OEM, ODM Products as well.
| Bore size(mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Acting type | Double acting | |||||||
| Fluid | Air(to be filtered by 40μm filter element) | |||||||
| Operating pressure | 0.2~1.0MPa(29~145psi)(2.0~10bar) | 0.15~1 .0MPa(22~145psij(1.5~10bar) | ||||||
| Proof pressure | 1.5MPa(215psi)(15bar) | |||||||
| Temperature | -20~70°C | |||||||
| Speed range | 50~ 200mm/s | |||||||
| Rotation angle | 90° | |||||||
| Repeatability | +2° | |||||||
| Rotation direction | Turn left or turn right | |||||||
| Rotation stroke(mm) | 7.5 | 9.5 | 15 | 19 | ||||
| Clamping stroke (mm ) | 10 20 | 10 20 30 | 10 20 30 50 | |||||
| Stroke tolerance | +1.0 | |||||||
| Cushion type | Bumper | |||||||
| Cushion type | M5x0.8 | 1/8" | 1/4" | |||||

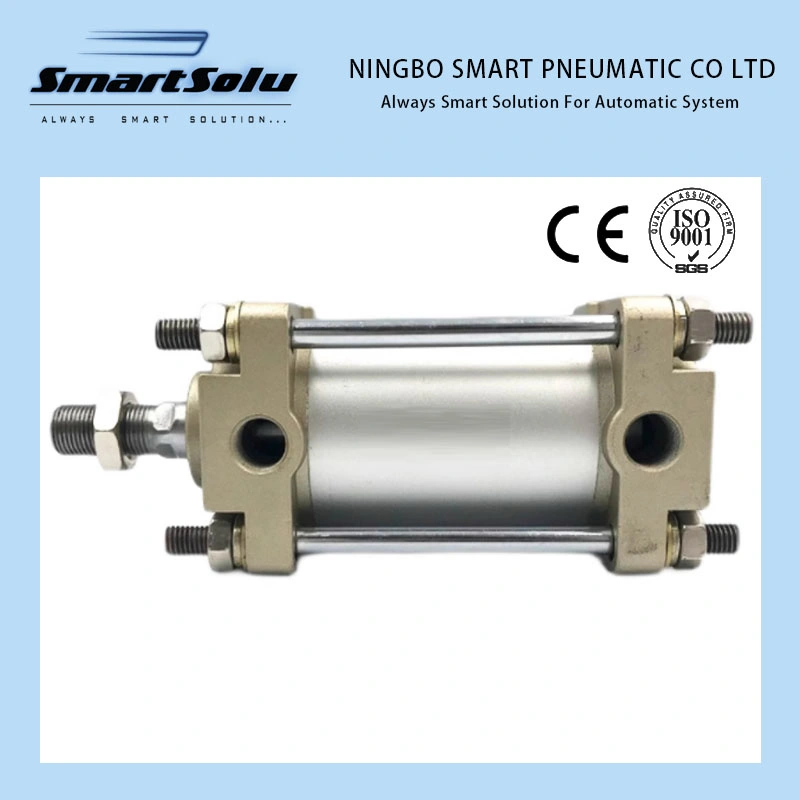

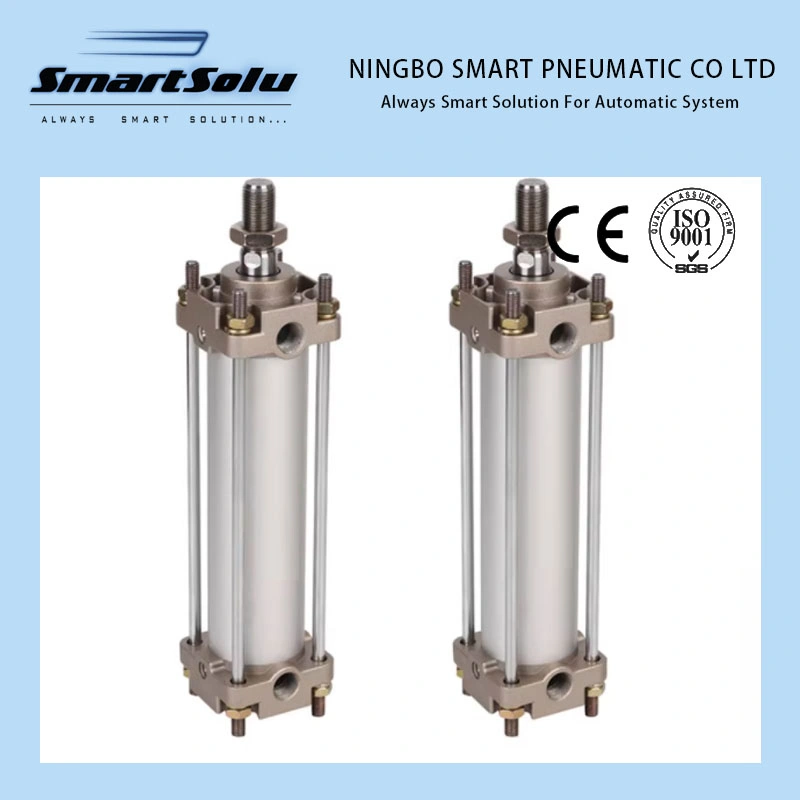

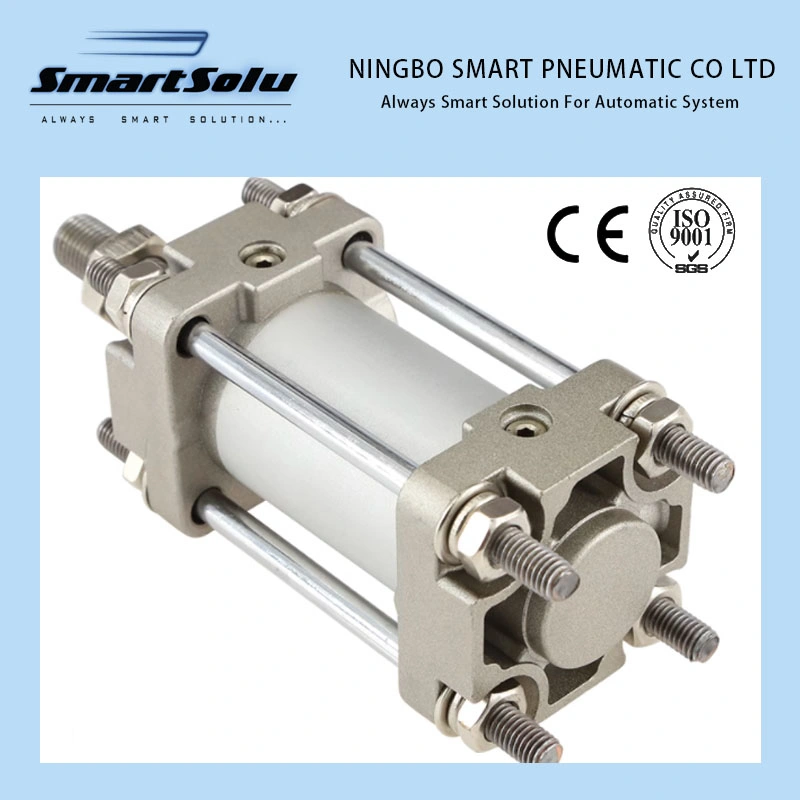

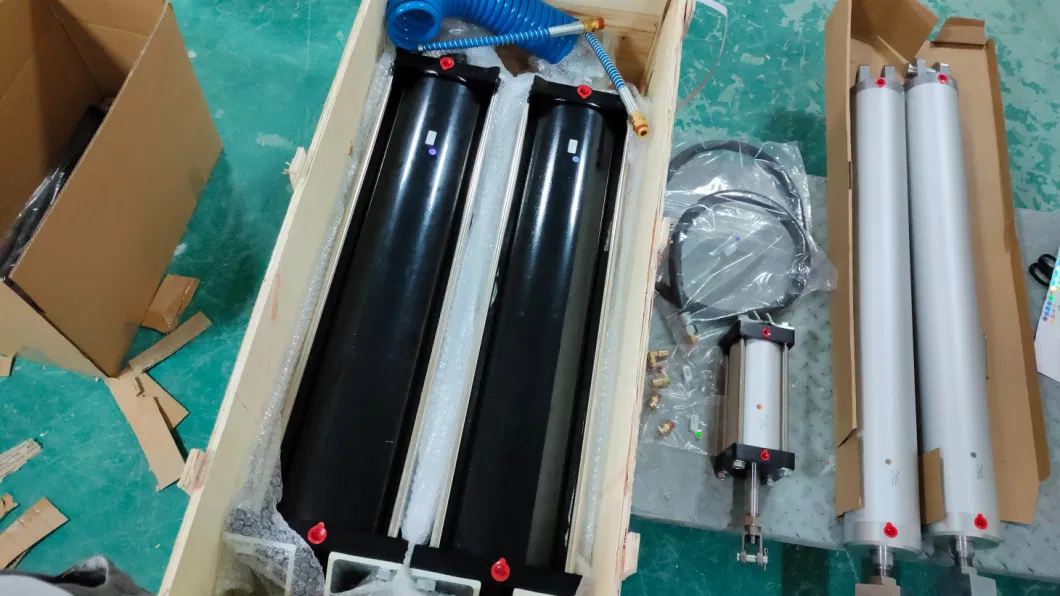

Photo of Product and Packing:
More than 10 years of experience in making customized pneumatic air cylinders,
Many Australia North American truck companies have come to us for customized pneumatic cylinders.
Many Australia North American truck companies have come to us for customized pneumatic cylinders.
Cartons, Wooden boxes and Pallets are our common packaging methods.
Special Customized Packing is also OK for us!
Special Customized Packing is also OK for us!

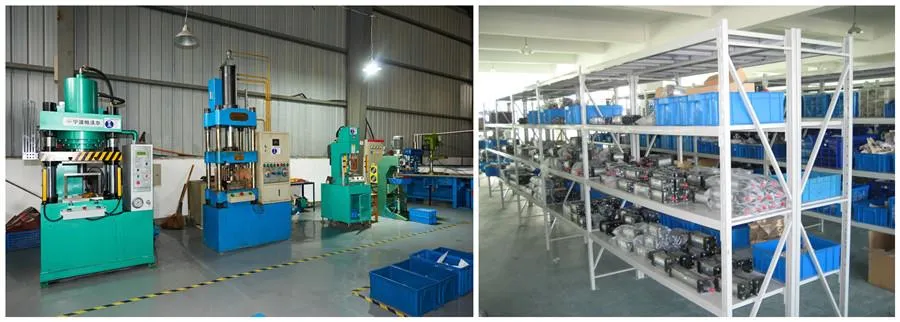

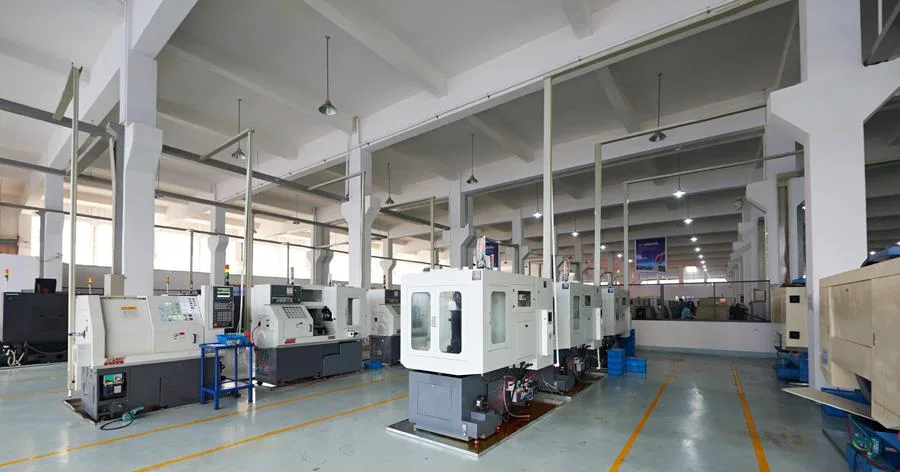

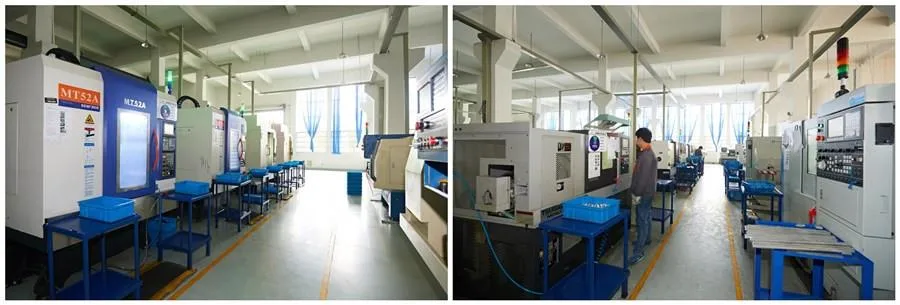

NINGBO HI-TECH SMART MACHINERY CO LTD was established in 2013, is a high tech company specialized in pneumatic components and microduct accessories manufacturing. After years' hard working, it has owned 2 factories now, and the products include pneumatic vibrators, air cylinders, solenoid valves, pneumatic fittings, microduct connectors and other accessory. We have sold our goods to more than 60 countries, and that numbers are still increasing.
Our Services & Strength:
1. We have more than 10 years experience on pneumatic products;
2. Excellent quality control has always been the goal of our practice;

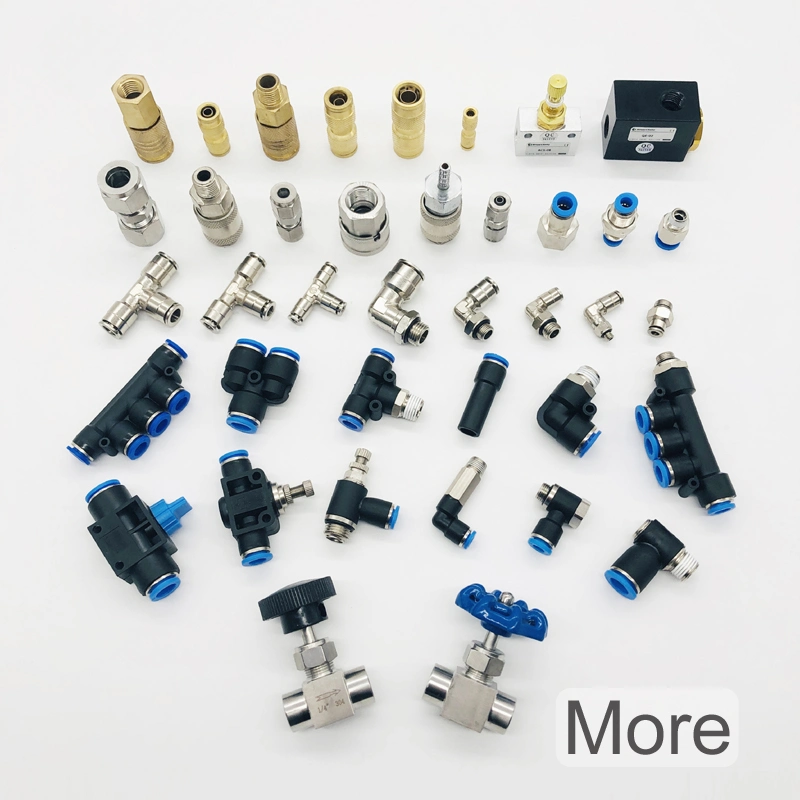

3. You can purchase most of the pneumatic products here;
4. Sample orders and orders with a small number of products are acceptable;
5. OEM, ODM is ok for us. Not only the label and packaging, but also the personalized customization of the
product itself;
6. Any requirements, just feel free to let us know.
Freight:
Sea freight, Express delivery (DHL, UPS, FedEx), Air freight, you can choose any method you want!
FAQ:
Q1. Are you factory or trading company?
A: We are the integration of factory and foreign trade company.
Q2. What is your MOQ?
A: 1 PCS for most standard products.
Q3. What is the delivery time?
A: We have most standard products in stock, they can be sent in 3-5 days after we receive the payment. For large quantity or unstandard products, we need to check according to the production status.
Q4. How to make the payment?
A: We accept T/T, Paypal, Western Union or credit card.
Q5. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q6. What is the warranty?
A: Our warranty is one year. If you find any defect products, just send photos or videos to us. We will re-make it or re-fund them to you once we confirm it is our responsibilities.
