Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam

Find high-quality Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam at our factory. Durable and efficient for all your water and steam control needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VJZ210Q2
Application
Forged Steel Globe Valve
Standard
DIN, GB, ANSI, BSW, JIS
Size
1/2"-3", DN10-DN80
Connection Way
Welded, Clamped, Female etc.
Operation
by Plastic Actuator
Acting
Single or Double
Transport Package
Standard Exporting Package
Specification
CE, ROTHS, SGS
Trademark
DONJOY
Origin
Wenzhou, Zhejiang, China
HS Code
8481802990
Production Capacity
Unlimited

Product Description

Sanitary PN16 SS316L Pneumatic Globe Control Valve for Water Steam


Applications:

Globe valve is a general switch in the automactic control system is widely used in printing, dyeing,bleaching, food,washing,

chemical, water treatment,pharmacy and other automated machinery and equipment. It is featured with water hammer

protection. Noise-free, reliable sealing performance.



Operationg Principles

1. Globe  valve are operated automatically by a single-acting or a double-acting pneumatic acutor. By supplyiing compressed

air, the shaft is moved to place the valve in the "open" or "closed" position.

2. The 180degree rotation of the pneumatic cylinder to realize the interchange of normally open and normally closed.


Target of competition

Donjoy 's vision is to be become leading supplier in fluid control, high purity sanitary valve &pump fields, with advanced

technology and excellent quality.

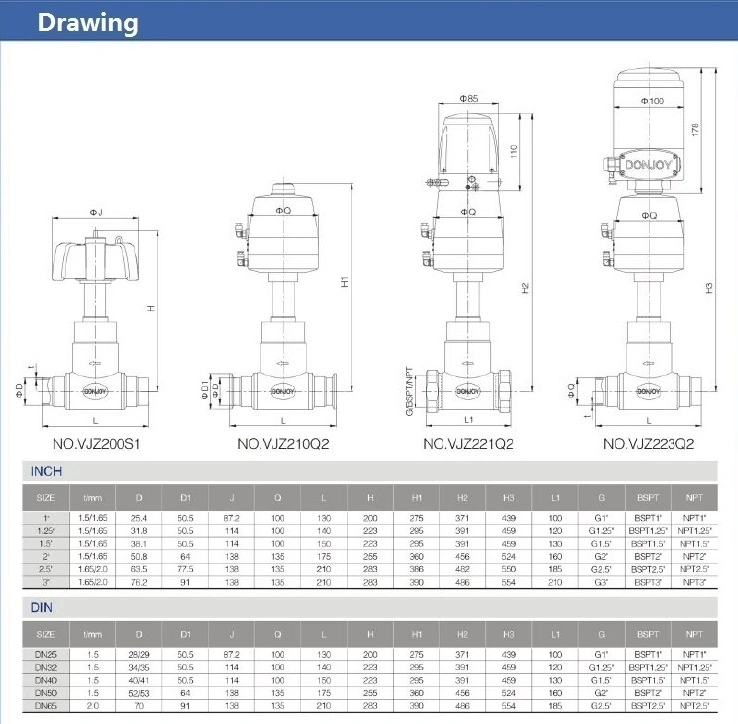

Technical specifications
Size 1/2"-3", DN10-DN80
Material 316L
Connection Thread, Clamp, Flange, BSP, BSPT, NPT, DIN
Working pressure 8 bar (standard)  10 bar (option)
Working temperature 120 ºC (standard) 180 ºC (option)
Power supply DC 24V
Signal input 0/4-20mA, 0/5-10V
Signal feedback 0/4-20mA, 0/5-10V
Application scope printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automated machinery and equipment.
Packaging details standard exporting package
Delivery details Usually within 20 days after receiving T/T down payment

Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam Sanitary Pn16 SS316L Pneumatic Globe Control Valve for Water Steam
