Basic Info.
Application
Sanitary Industry,Water Industrial Usage
Standard
DIN, GB, ANSI, BSW, JIS
Operation
by Handle or Air Actuator
Gasket
PTFE
Size
DN15-DN80, 1/2′′-3′′
Connection Type
Weld,Clamp,Thread,Flange
Max Pressure
10bar
Product Name
Sanitary Stainless Steel Pneumatic Globe Valve
Keyword
Sanitary Stainless Steel Pneumatic Globe Valve
Transport Package
Carton/Plywood Case
Specification
DIN/SMS/3A/ISO/IDF
Trademark
DONJOY
Origin
Wenzhou, Zhejiang, China
HS Code
8481804090
Production Capacity
200, 000PCS
Product Description
Sanitary Stainless Steel Air Actuated Control Globe Valve with Mini C -Top Control Unit
Applications:
Globe valve is a general valve in the automatic control system, which is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automated machinery and equipment.
It's equipped with water hammer protection, noise-free, reliable sealing performance.

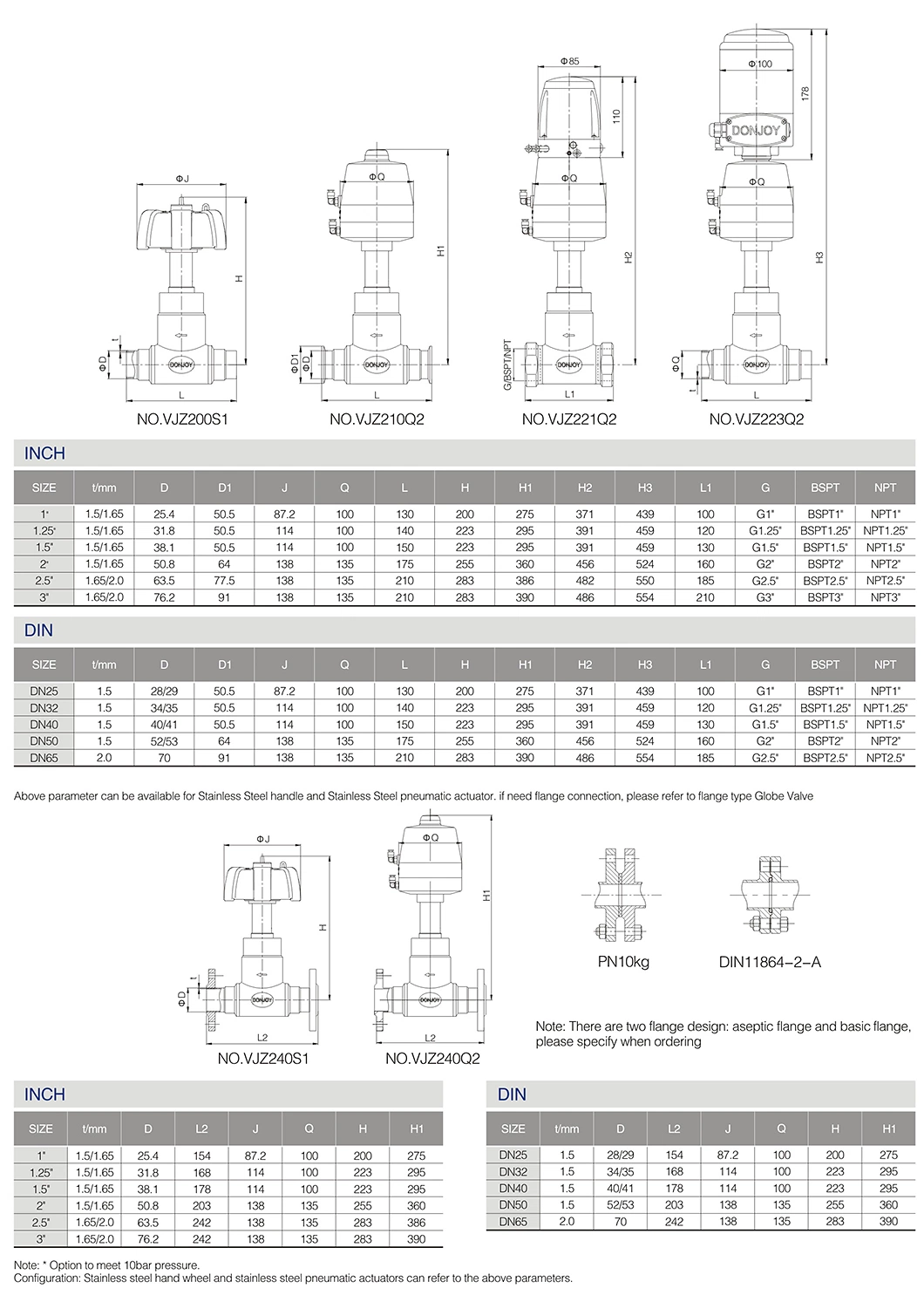

Technical specification:
| Size | 1/2"-3", DN15-DN80 |
| Material | CF8M/316 |
| Connection | Weld, Clamp, Female |
| Working pressure | 8 bar (standard) 10 bar (optional) |
| Working temperature | 120 ºC (standard) 180 ºC (optional) |
| Power supply | DC 24V |
| Signal input | 0/4-20mA, 0/5-10V |
| Signal feedback | 0/4-20mA, 0/5-10V |
| Operating mode | Manual: plastic handwheel, stainless steel handwheel |
| Pneumatic: plastic and stainless steel actuator | |
| Pneumatic control mode: valve positioner, process controller, control unit and position sensor | |
| Application scope | printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automated machinery and equipment. |
| Certificate | PTFE FDA177.5500 PED/97/23/EC |
| Packaging details | Standard exporting package or customized |
| Delivery details | Usually within 20 working days or so after receiving T/T down payment |
Clamped, welded and threaded, flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
Delivery details:
Usually within 20 days after receiving T/T down payment.
If you have any inquiry, please leave message below and "Click Send "
