Basic Info.
Model NO.
AT
Acting Type
Double Acting
Material
Aluminum
Customized
Customized
Structure
Rack and Pinion
Applicable Air Source
0.4-0.7MPa
Connection
Namur, ISO5211 and DIN3337
Acting Mode
Bouble-Acting,Single-Acting
Cup Color
Grey, Black, Sky Blue, Dark Blue, Red, Orange, Yel
Body Color
Black,Grey,Gold,Aluminum Primary Color
Output Torque
0-11000nm
Transport Package
Standard Wooden Box
Specification
AT52-AT400
Trademark
BOHAI
Origin
Tianjin′ China
HS Code
8481804090
Production Capacity
50000 PCS Per Year
Product Description
SIngle-acting At Series Pneumatic Actuator
I:Product Description
The pneumatic actuator of AT series valve is driven through compressed air, it is the driven device of open-close ball valve, butterfly valve and also other angle rotary valves. It is the perfect set to realized the remote centralization or separately control industrial automation pipeline.
According to the customer's demands, we can install solenoid valve , locator(the opening indication), signal feedback device, strainer, pressure reducing valve, all kinds of limited switch and manual device in the pneumatic actuator .
II:Main Technical Parameters
1. Medium: clean, dry and without corrosive compressed air
2. Working air pressure: 0.4~0.7 MPa
3. Working environmental pressure:
Standard type: -20ºC~+80ºC
High temperature type: -20ºC~+180ºC(short time can up to 200ºC)
4. Rotation Angle: 90° +-3°
5. Solenoid valve voltage: AC220V or DC24V (also according to the customer's requirement )
6. Output torque: Form 1 for AT double-acting actuator
III:Product Structure
1. Combination Spring 2. End cap bolt 3. Aluminum alloy cylinder block
4. Indicators 5. Guide Bearing 6. Adjusting screw 7. Gear and rack
IV: Installation Dimensions
Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
The pneumatic actuator of AT series valve is driven through compressed air, it is the driven device of open-close ball valve, butterfly valve and also other angle rotary valves. It is the perfect set to realized the remote centralization or separately control industrial automation pipeline.
According to the customer's demands, we can install solenoid valve , locator(the opening indication), signal feedback device, strainer, pressure reducing valve, all kinds of limited switch and manual device in the pneumatic actuator .
II:Main Technical Parameters
1. Medium: clean, dry and without corrosive compressed air
2. Working air pressure: 0.4~0.7 MPa
3. Working environmental pressure:
Standard type: -20ºC~+80ºC
High temperature type: -20ºC~+180ºC(short time can up to 200ºC)
4. Rotation Angle: 90° +-3°
5. Solenoid valve voltage: AC220V or DC24V (also according to the customer's requirement )
6. Output torque: Form 1 for AT double-acting actuator
| AT Double-acting Output Torque Meter | ||||
| MODEL | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa |
| AT52DA | 14 | 17 | 21 | 24 |
| AT63DA | 23 | 28 | 34 | 40 |
| AT75DA | 45 | 56 | 68 | 79 |
| AT88DA | 71 | 89 | 106 | 124 |
| AT100DA | 103 | 129 | 154 | 180 |
| AT115DA | 166 | 207 | 249 | 291 |
| AT125DA | 214 | 268 | 322 | 375 |
| AT145DA | 336 | 421 | 505 | 589 |
| AT160DA | 439 | 549 | 658 | 768 |
| AT180DA | 592 | 741 | 889 | 1037 |
| AT200DA | 820 | 1029 | 1234 | 1440 |
| AT245DA | 1440 | 1801 | 2161 | 2521 |
| AT265DA | 2007 | 2508 | 3010 | 3512 |
| AT330DA | 3604 | 4504 | 5405 | 6306 |
| AT400DA | 6671 | 8339 | 10007 | 11674 |

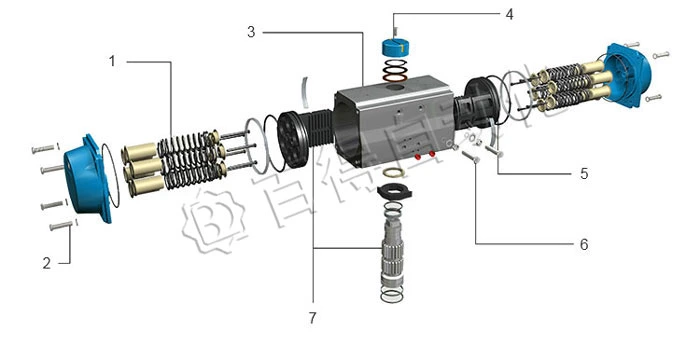

III:Product Structure
1. Combination Spring 2. End cap bolt 3. Aluminum alloy cylinder block
4. Indicators 5. Guide Bearing 6. Adjusting screw 7. Gear and rack

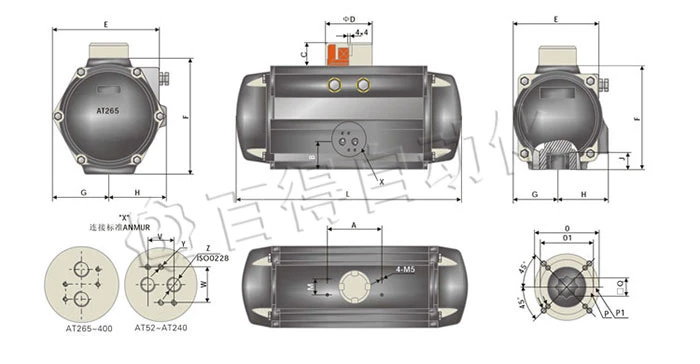

IV: Installation Dimensions
| AT Pneumatic Actuator Profile Dimension Table | |||||||||||||||
| MODEL | AT52 | AT63 | AT75 | AT88 | AT100 | AT115 | AT125 | AT145 | AT160 | AT180 | AT200 | AT245 | AT265 | AT330 | AT400 |
| ISO flange | F04 | F05 | F05-07 | F05-07 | F07-10 | F07-10 | F07-10 | F10-12 | F10-12 | F14 | F14 | F16 | F16 | F16 | F25 |
| L | 140.5 | 158.5 | 210.5 | 247.5 | 268.5 | 315 | 345 | 408.5 | 437.5 | 487 | 543 | 633 | 728 | 860 | 1050 |
| B | 26.5 | 30 | 30.5 | 32.5 | 38.5 | 42.5 | 45 | 47.5 | 52 | 58.5 | 62.5 | 78.5 | 165 | - | - |
| C | 20 | 20 | 20 | 20 | 20 | 30 | 30 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 |
| φD | 40 | 40 | 40 | 40 | 40 | 56 | 56 | 65 | 65 | 80 | 80 | 115 | 115 | 115 | 115 |
| E | 59 | 72 | 84.5 | 97.5 | 111 | 127 | 136 | 156.5 | 169 | 190.5 | 213 | 251 | 298.5 | 371 | 435 |
| F | 69 | 85 | 102 | 115 | 127 | 145 | 157 | 177 | 196 | 220.5 | 245 | 298.5 | 330 | 405 | 486 |
| G | 29 | 36 | 42.5 | 49.5 | 56 | 64 | 69.5 | 80 | 88 | 99 | 110 | 131 | 163.5 | 206 | 245 |
| H | 41.5 | 47 | 52 | 56.8 | 67 | 77 | 82 | 91.5 | 99 | 105 | 112 | 131 | 166 | 207 | 252 |
| Jmin | 12 | 16 | 16 | 19 | 19 | 24 | 24 | 29 | 29 | 38 | 38 | 38 | 48 | 55 | 55 |
| A | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 130 | 130 | 130 | 130 | 130 | 130 |
| M | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| φ01 | 42 | 50 | 50 | 50 | 70 | 70 | 70 | 102 | 102 | 140 | 140 | 165 | 165 | 165 | 245 |
| φ0 | - | - | 70 | 70 | 102 | 102 | 102 | 125 | 125 | - | - | - | - | - | - |
| P1 | 4-M6 | 4-M6 | 4-M6 | 4-M6 | 4-M8 | 4-M8 | 4-M8 | 4-M10 | 4-M10 | 4-M16 | 4-M16 | 4-M20 | 4-M20 | 4-M20 | 8-M16 |
| P | - | - | 4-M8 | 4-M8 | 4-M10 | 4-M10 | 4-M10 | 4-M12 | 4-M12 | - | - | - | - | - | - |
| Q | 11 | 14 | 14 | 17 | 17 | 22 | 22 | 27 | 27 | 36 | 36 | 36 | 46 | 55 | 55 |
| V | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 40 | 40 | 40 | 40 |
| W | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 45 | 45 | 45 | 45 |
| Y | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M5×8 | M6×10 | M6×10 | M6×10 | M6×10 |
| Z | 1/8" | 1/8" | 1/8" | 1/8" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 3/8" | 1/2" | 1/2" | 1/2" |
