Product Description
Technical specifications of HB-DJ806 Linear Actuator:
Usage: Boat, Car, Industrial machinery, windows, cleaning cars, Other
1)Voltage: 48V 36V 12V 24VDC permanent magnet
2)Motor Power: 11W
3)Standard stroke: 20 50 100 150 200 250 300 350 400mm, (option)
4)Standard mounting dimensions: Stroke +105 MM
5)PS: The special stroke could be designed according to your request
6)Load capacity: 250N 500N 1200N
7)No load speed: 25mm/s(250N) 10.5mm/s(600N) 5.5mm/s(1200N)
8)Type of duty: 25%
9)Ambient temperature: -25° C~65° C
10)Protection class: IP65
11)Built-in limit switches, not adjustable after leave factory
12)Low noise design: Db<65
13)Certification: CE, RoHS
14)Colour: Black or gray
Feature
1. Operation can be automated
2. Passed QMS ISO9001: 2008 and Cert. CE/EMC + LVD.
3. Long stroke
4. High fast
5. Aluminum Alloy or stainless steel
6. Waterproof
7. With limit switch and potentiometer optional

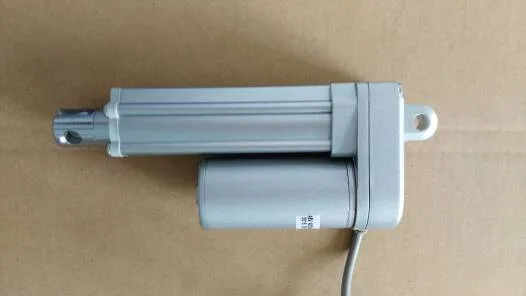

Mini linear actuator DC motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
Feature & Benefits
Limit Switches - internal, factory preset
Zinc Die Cast Housing for strength
Aluminum outer tube for corrosion resistance
Polished aluminum translating tube for smooth operation
Warranty - 1 year, parts and labor
Options
Potentiometer
Stainless steel translating tube
Custom cable lengths
Wired or wireless controller and handsets
Note
--Working tempreture:
The lowest tempreture: Minus 40 centigrate, but if you didn't inform us your application and working condition,
We will do normally minus 25 centigrate.
--Potentiometer:
The price not include the potentiometer, if you didn't inform us, we will as Contains no potentiometer to produce
--Payment terms
We accept T/T. Paypal, L/C.
Sample order pay through Paypal or T/T, Westen Union
Bulk order T/T 50% deposit, 50% balance before shipment or L/C at sight

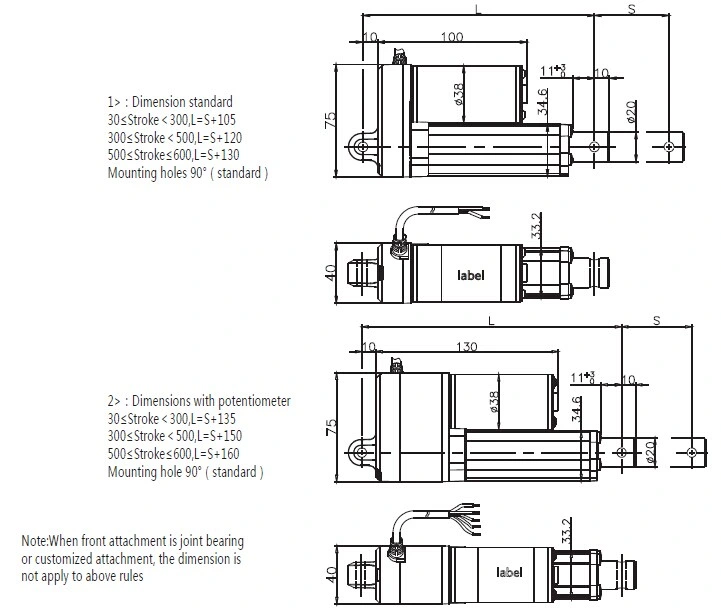

Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +135(± 3)}
Installation Dimension Calculating Description:
Standard HB-DJ806:
For example: Stroke 150mm,
Installation size = 150mm +105 mm = 255mm (± 3)
Extending maximum size 360MM (± 3)
Custom questions
Q: How much the linear actuator?
A: We need the specific specification, please tell me the stroke, input voltage, load, IP level.
Within 18 hours I will sent to you the best price via email.
Q: How much does shipping cost and what shipping methods do you support?
A: Shipping is calculated based on the weight of the order and the distance it is travelling;
For FedEx, DHL, UPS, TNT, EMS pricing please contact us for specific pricing.
Q: When will my order be shipped?
A: All regular, orders ship within 7-10 days of receipt.
Custom Orders have their own timeline depending on exactly what you need changed.
Please tell me the order quatity, I will offer you the time.
Please feel free to contact us, we will reply within 24h!
We want to know:
1. What about the requirement for linear actuator, such as load, stroke, input voltage, IP level, order quatities?
2. Whether you need us offer you wire or wireless controller and handset?
3 Which place you use the linear actuator?
4 Could you offer me your address? I will offer you freight together.
Contact:
Usage: Boat, Car, Industrial machinery, windows, cleaning cars, Other
1)Voltage: 48V 36V 12V 24VDC permanent magnet
2)Motor Power: 11W
3)Standard stroke: 20 50 100 150 200 250 300 350 400mm, (option)
4)Standard mounting dimensions: Stroke +105 MM
5)PS: The special stroke could be designed according to your request
6)Load capacity: 250N 500N 1200N
7)No load speed: 25mm/s(250N) 10.5mm/s(600N) 5.5mm/s(1200N)
8)Type of duty: 25%
9)Ambient temperature: -25° C~65° C
10)Protection class: IP65
11)Built-in limit switches, not adjustable after leave factory
12)Low noise design: Db<65
13)Certification: CE, RoHS
14)Colour: Black or gray
Feature
1. Operation can be automated
2. Passed QMS ISO9001: 2008 and Cert. CE/EMC + LVD.
3. Long stroke
4. High fast
5. Aluminum Alloy or stainless steel
6. Waterproof
7. With limit switch and potentiometer optional
Mini linear actuator DC motor
1. Small motor linear actuator with ACME screws, built-in Micro switch and an internal diode,
2. Can automatically stop and enables the change of direction by simply reversing the applied voltage polarity.
3. Stroke length can be customized. Switches are not made to be adjustable.
Feature & Benefits
Limit Switches - internal, factory preset
Zinc Die Cast Housing for strength
Aluminum outer tube for corrosion resistance
Polished aluminum translating tube for smooth operation
Warranty - 1 year, parts and labor
Options
Potentiometer
Stainless steel translating tube
Custom cable lengths
Wired or wireless controller and handsets
Note
--Working tempreture:
The lowest tempreture: Minus 40 centigrate, but if you didn't inform us your application and working condition,
We will do normally minus 25 centigrate.
--Potentiometer:
The price not include the potentiometer, if you didn't inform us, we will as Contains no potentiometer to produce
--Payment terms
We accept T/T. Paypal, L/C.
Sample order pay through Paypal or T/T, Westen Union
Bulk order T/T 50% deposit, 50% balance before shipment or L/C at sight
Size formula
Installation size = stroke S +105 (± 3)
{installation of the potentiometer mounting dimensions = the stroke S +135(± 3)}
Installation Dimension Calculating Description:
Standard HB-DJ806:
For example: Stroke 150mm,
Installation size = 150mm +105 mm = 255mm (± 3)
Extending maximum size 360MM (± 3)
Custom questions
Q: How much the linear actuator?
A: We need the specific specification, please tell me the stroke, input voltage, load, IP level.
Within 18 hours I will sent to you the best price via email.
Q: How much does shipping cost and what shipping methods do you support?
A: Shipping is calculated based on the weight of the order and the distance it is travelling;
For FedEx, DHL, UPS, TNT, EMS pricing please contact us for specific pricing.
Q: When will my order be shipped?
A: All regular, orders ship within 7-10 days of receipt.
Custom Orders have their own timeline depending on exactly what you need changed.
Please tell me the order quatity, I will offer you the time.
Please feel free to contact us, we will reply within 24h!
We want to know:
1. What about the requirement for linear actuator, such as load, stroke, input voltage, IP level, order quatities?
2. Whether you need us offer you wire or wireless controller and handset?
3 Which place you use the linear actuator?
4 Could you offer me your address? I will offer you freight together.
Contact:
| Input Voltage | 12/2436/48VDC |
| Max Charge/Push Force | 1200N |
| Speed | 5-100mm/s |
| Stroke | 20-600(Optional) |
| Limited Switch | Build-in(non-djustable) |
| Operation Temperature | -26~65°C |
| Protective Class | IP65 |
| Duty Cycle | 25% |
| Min Installation Size | S+105mm(standard) S+120(S>300mm) |
| Life Span | >20,000 times |
| Material | Aluminium alloy |
| Cover Color | Black/Slivery White |
| Optional Fittings | Potentiometer |
| P roduct mode | M ax load(N) | Free load of speed(mm/s) | P ower |
| HB-DJ806 | 1 000 | 4~5 | 11 W |
| 75 0 | 8 | ||
| 430 | 12 | ||
| 600 | 1 0 | ||
| 450 | 1 6 | ||
| 200 | 42 | ||
| 100 | 60 |
| Actuator Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 |
| Basic Installation Stroke(mm) | 155 | 205 | 255 | 305 | 355 | 405 |
| With potentiometer installation | 185 | 235 | 285 | 335 | 385 | 435 |
