Basic Info.
Alternating Current
AC24-AC380V
Direct Current
DC24-48V
Running Time
19s
Power
10-100W
Control Loop
a, B, C, D, E, F, G, H
Rotation Angle
0-360° Adjustable
Protection
IP67
Additional Options
Heating Dehumidifier, Handle
Color
Can Be Customized According to The Color Number
Export Packing
Plywood Case
a Complete Set of Service
Free Installation of Ball and Butterfly Valves
Sample
Free Sample
Warranty Period
1 Year
OEM
Ok, Design and Make Nameplates for Free
Discount
Talking to Me
Transport Package
Plywood Boxes
Specification
2KG
Trademark
VALVESPRO / OEM
Origin
China
HS Code
8501400000
Production Capacity
60000 PCS/Year
Product Description
| Brand: | Valvespro/OEM brand |
| Enclosure: | Weatherproof enclosure IP67,NEMA 4 and 6 |
| Power supply: | 24/48/110/220V AC 1PH,380V AC 3PH 50/60Hz,±10% DC24/48 V |
| Control Power Supply: | 110/220VAC 1PH,50/60Hz,±10% |
| Torque Range: | 25Nm,30Nm,40Nm,45Nm,50Nm,100Nm,200Nm,400Nm,500Nm,600Nm, |
| 1000Nm,2000Nm,4000Nm,6000Nm. | |
| Duty Cycle(on-off): | S2,70% Max 30Min |
| Duty Cycle(modulating): | S4,40~70% Max 300~1600 start/hour (Option:100%) |
| Motor: | Induction motor(Reversibe motor) |
| Limit Switches | Open/close,SPDT,250V AC 16A rating |
| Additional limit switches | Open/close,SPDT,250V AC 16A rating |
| Torque switches | Open/close,SPDT,250V AC 16A rating |
| Stall Protection/operating temp | Built-in thermal protection,open 150ºC±5ºC/close 97ºC±15ºC |
| Travel Angle | 90ºC±10ºC(0ºC-110ºC) |
| Indicator: | Continuous position indicator |
| Manual Override: | Declutching Mechanism |
| Self locking | Provided by double worm gearing |
| Mechanical Stopper | 2 external adjustable screws |
| Space heater | 10W(110/220V AC) Anti-condensation |
| Cable entries | Three PF3/4 tap (standard type only) |
| Lubrication | Grease moly(EP type) |
| Terminal block | Spring loaded lever push type |
| Materials | Steel,Aluminium alloy,AI bronze,Polycarbonate |
| Ambient temperature | -20ºC~70ºC(except option electronic board) |
| Ambient humidity | 90%RH Max.(non-condensing) |
| Anti vibration | X Y Z 10g,0.2~34Hz,30minute |
| External coating | Anodizing Treatment before dry powder,Polyester |
| Applicable media: | Water,Oil,Gas,Nitric Acid,Acetic Acid |
| Applicable area: | Industrial,water treatment,Oil&Gas |
| Certification: | CE/API/DNV/FDA/ISO9001-2008 |
| Sample Testing: | One Sample for free(under $30),freight collect |
| Packing: | Plastic Bag,Carton&Polywood Case/According to customer's requirement |
| Payment: | T/T,L/C,D/P,Western Union,Paypal |
| Port: | Ningbo / Shanghai Port/Customer's request |
| Delivery time: | Generally within 30 days after receiving T/T deposit Payment |
| Term of Delivery: | FOB/CNF/CIF,Customer's Request |
| Optional function | Dehumidify heater, Handle,etc |
| Matched Valve | Electric Ball Valve, Electric Butterfly Valve,Electric Control Valve |
| Application Area | natural gas, oil, chemical engineering, Metal smlting, Paper making, Printing and dyeing, Electricity, Mining, Biopharmacy, Household chemicals, Food and beverage, Water tretment, Air handling, Mechanical equipment and other industries. |

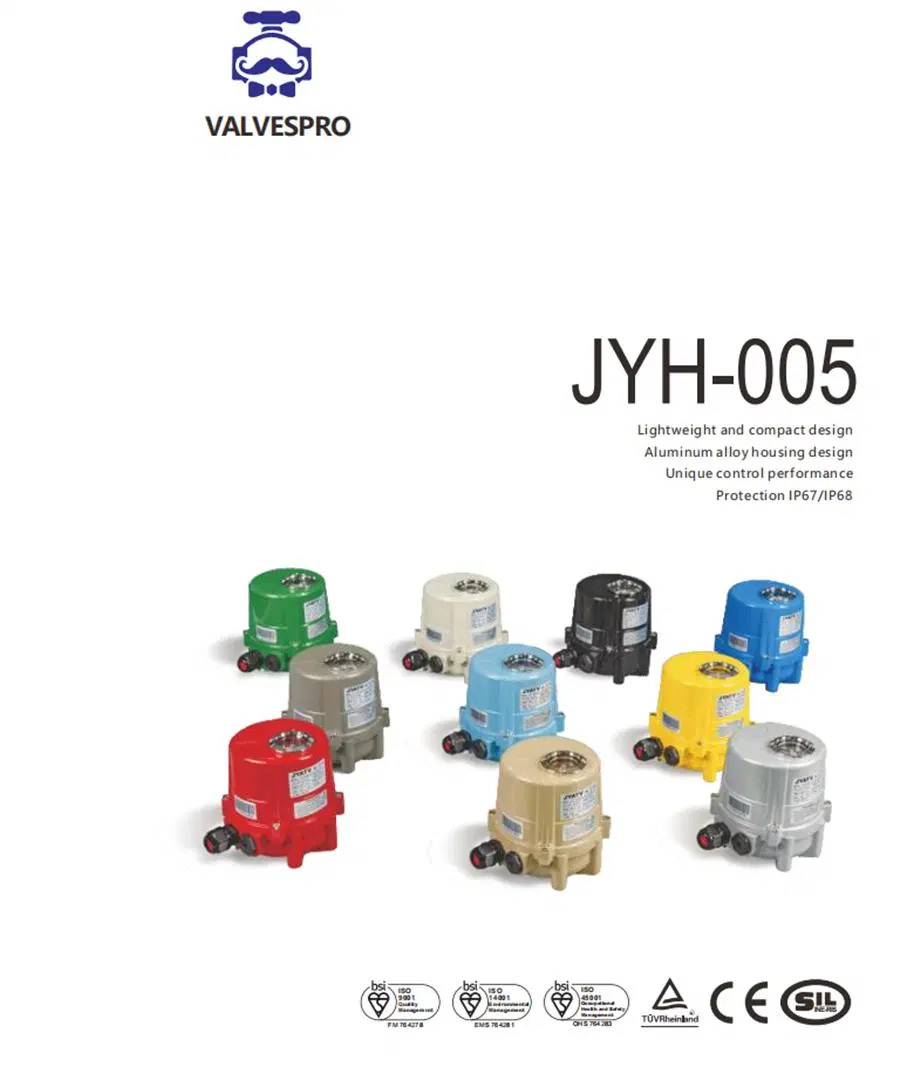

JYATV ELECTRIC ACTUATOR MODEL JYH 005
Product Details Show
Production Process And Procedures
Workshop And Testing Equipment
