Basic Info.
Model NO.
2W311-10
Pressure
Ordinary Pressure
Valve Structure
Direct-Acting Piston Structure
Usage
Flow Control
Standard
GB
Application
Industrial Usage
Transport Package
Carton
Trademark
alpha
Origin
China
Product Description

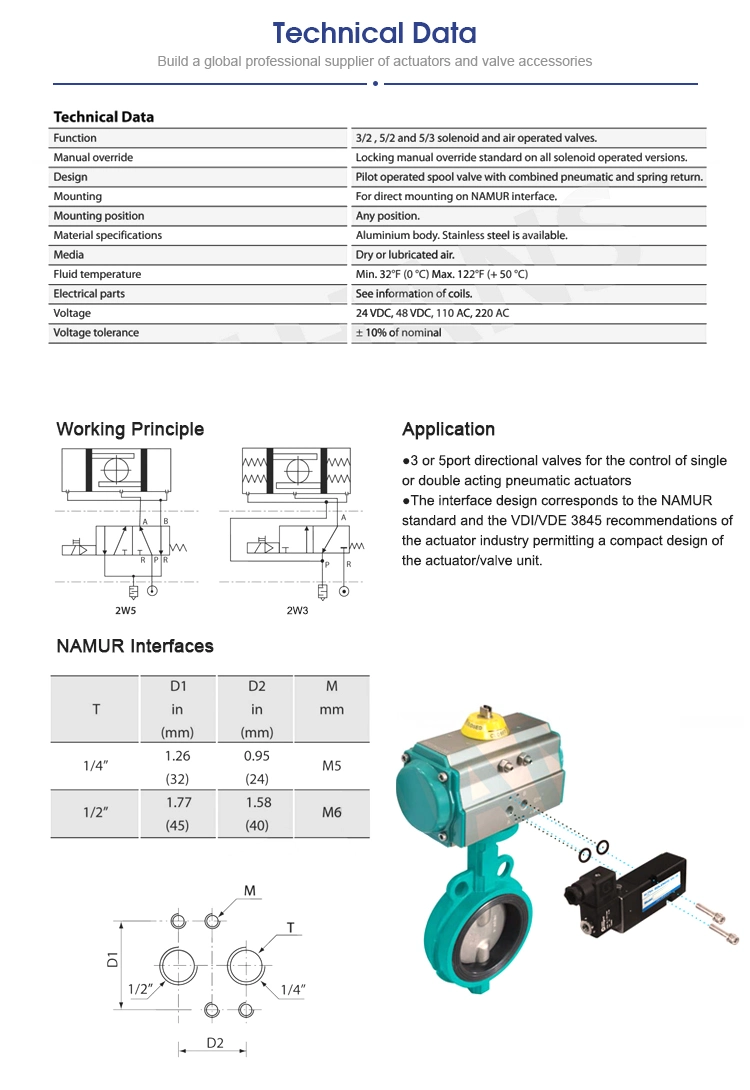

1.Technical Data

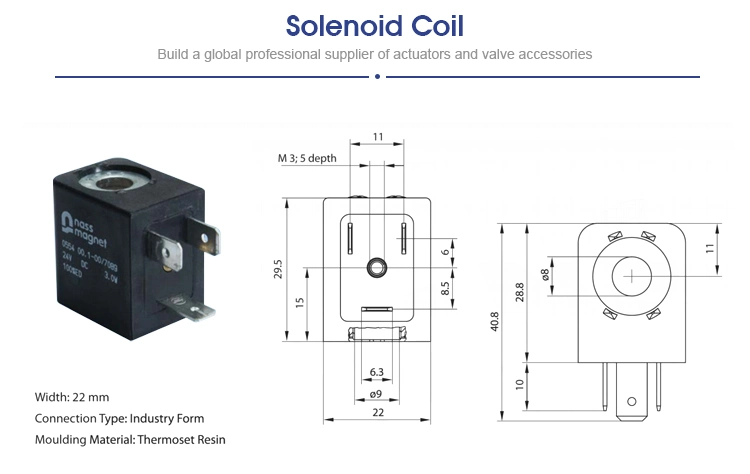

Widths : 22 mm Ex II 2G EEx m II T_/IEC Ex m II T_
Ex II 2D IP 65 T_ ºC/ IP65 DIP A21 T_ ºC
Protection by Encapsulation
Connection Type: Cable H05VV-F 3G1
Special Version: System 8 Ex
Width : 36 mm
Ex m II T4 + Division 1
Connection Type : Flying Leads, Thread 1/2-NPT

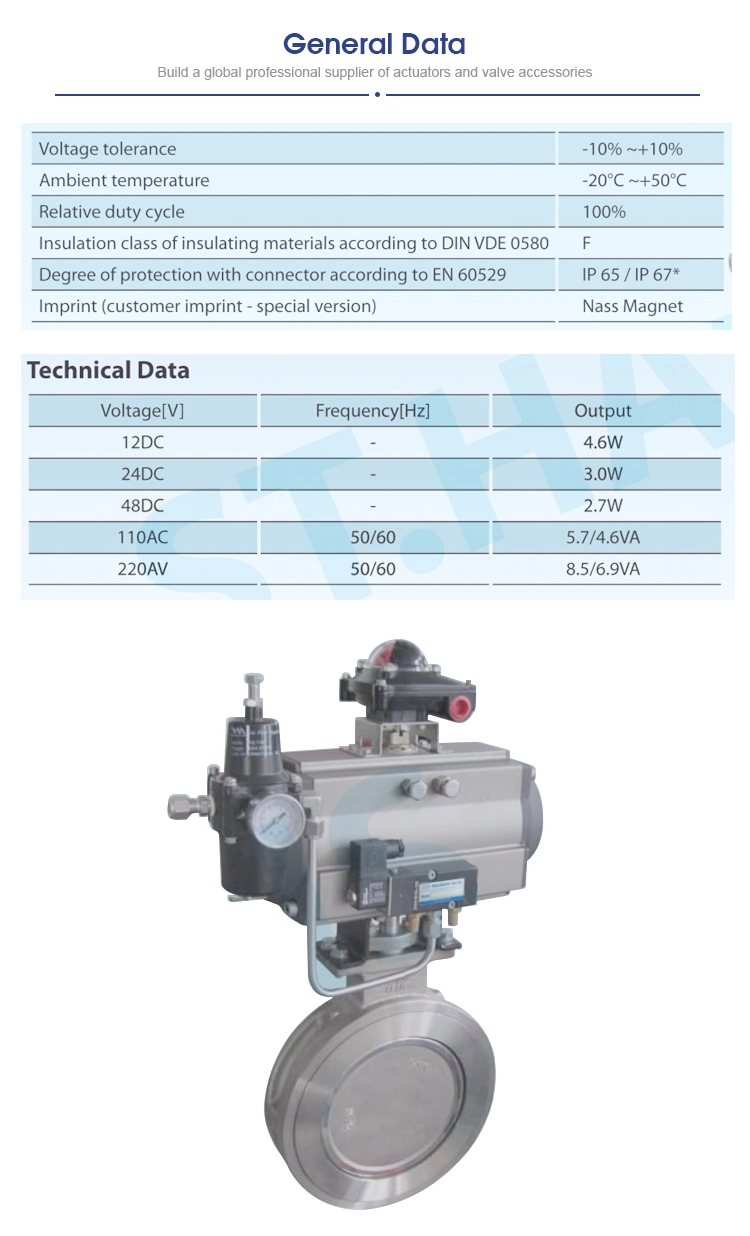

| Voltage tolerance | -10% ~+10% |
| Ambient temperature | -2ºC~+50ºC |
| Relative duty cycle | 100% |
| Insulation class of insulating materials according to DIN VDE 0580 | F |
| Degree of protection with connector according to EN 60529 | IP 65 / IP 67* |
| Imprint (customer imprint - special version) | Nass Magnet |
3. Product Range
Please do not hesitate to contact us if you are interested in our products!
