Basic Info.
Model NO.
longva2273
Stem Thread Position
Welding
Application
Diaphragm Valve
Standard
DIN, ANSI
Size
DN15-DN65
End Connection
Welding,Tri Clamp,Flange
Seat
Dpdm+PTFE
Type
Straight,Three Way
Control
Manual,Pneumatic
Transport Package
1PC/Foam Case Then Put Into Carton Box
Specification
size: DN15-DN300
Trademark
LONGVA
Origin
Whenzhou, China
HS Code
8481804090
Production Capacity
8000 PCS/Month
Product Description

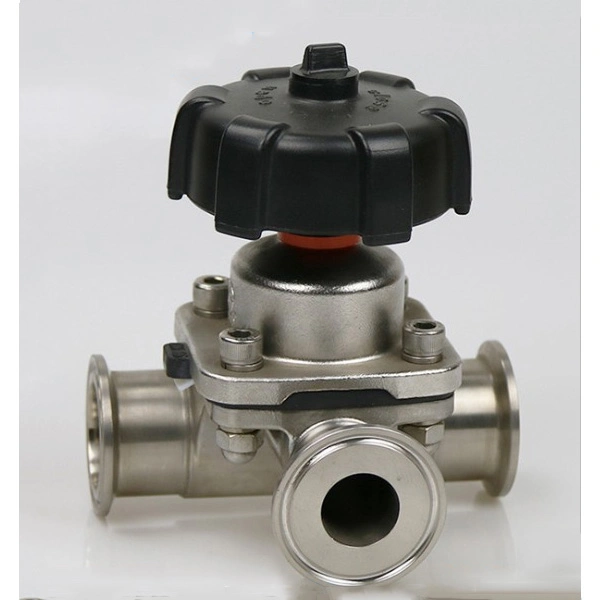

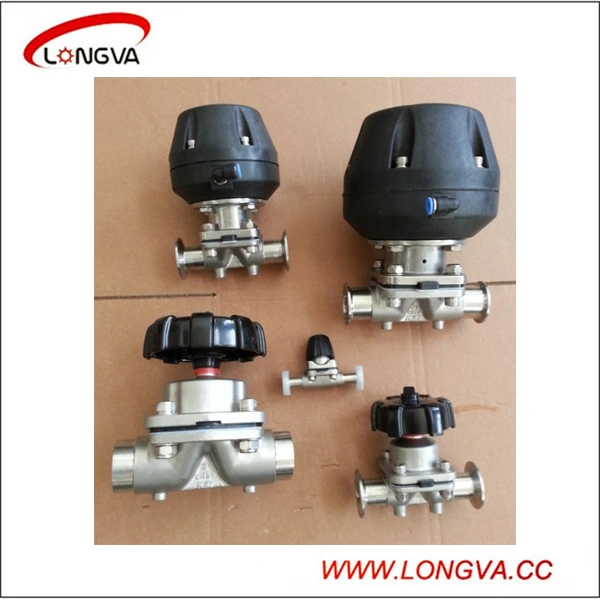

Stainless Steel Sanitary Manual Pneumatic Diaphragm Valve
| Material | stainless steel 304 or 316 |
| size | 1/2"-2.5" |
| Seal | EPDM+PTFE |
| Standard | DIN,SMS,3A,ISO,RJT A |
| Pressure | Working pressure:0~10bar; Control air pressure:5-8 bar |
| Working temperature | VMQ:(-50~+180 °)EPDM:(-20~+135),FPM:(-30~+230°) |
| Sterilization temperature | 150°C(MAX 20 min) |
| Surface treatment | inside surface treatment Ra≥0.4-0.8um; surface treatment Ra≥0.8-1.6um |
| Connection | welding,tri clamp,flange,union |
| Application | wine,dairy products,beverage,foodstuff industry,pharmacy etc. |
