Basic Info.
Model NO.
5NM
Transport Package
Box
Specification
12cmx24xmx12cm
Trademark
star win
Origin
China
HS Code
8501530090
Production Capacity
8888888
Product Description
Ningbo Star Win Actuators Manufacture Co.,Ltd has focused on top quality HVAC parts for over 30 years in China. We started as a transmission parts, stamping parts factory, but now have become one of the leading suppliers of the air damper actuators in the HVAC field in China.
We now have the 5Nm spring return electric damper actuator(analogy BLF), the 15Nm reverse electric damper actuator( analogy BLE), the 6Nm, , 10Nm, 16Nm, 25Nm, 40NM on/off type electric damper actuator(analogy NM, LM, SM, GM), and 6Nm, 10Nm, 24V modulating electric damper actuator( analogy NM) and some other manual actuator.

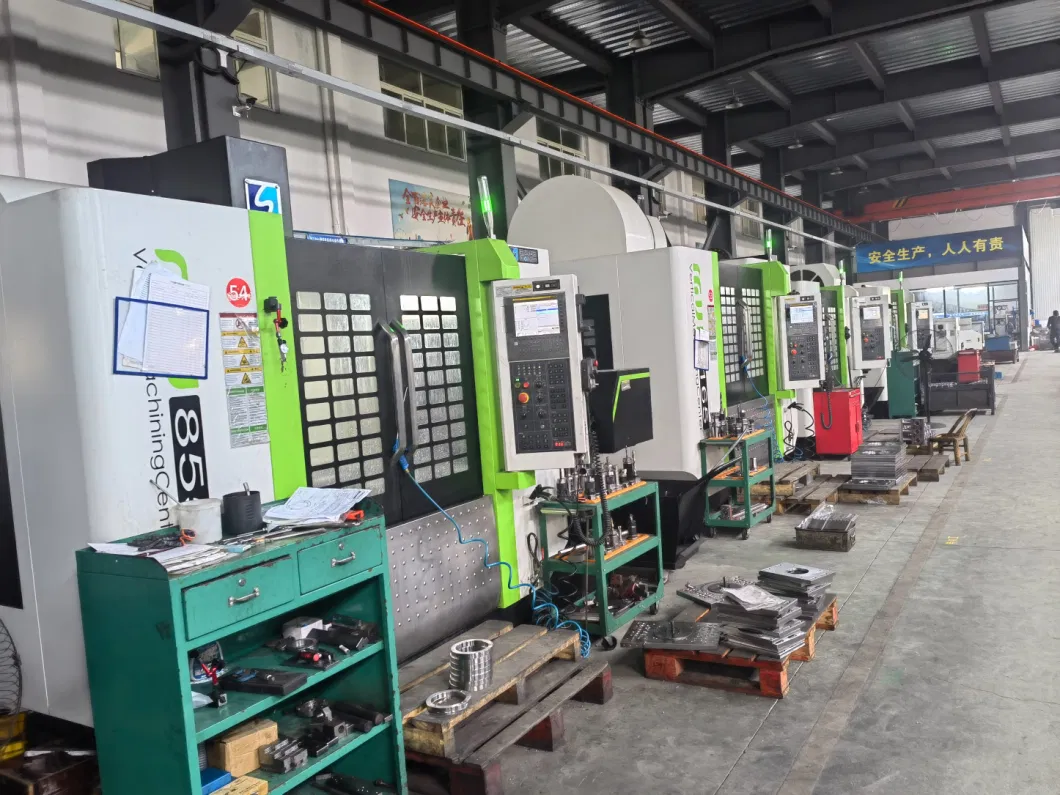

For we are born of machinery parts factory, all the damper actuators parts are made by our own, the quality and delivery time can be controlled well, and keep our cost lower, to help you source the reasonable price actuator to win the market well.

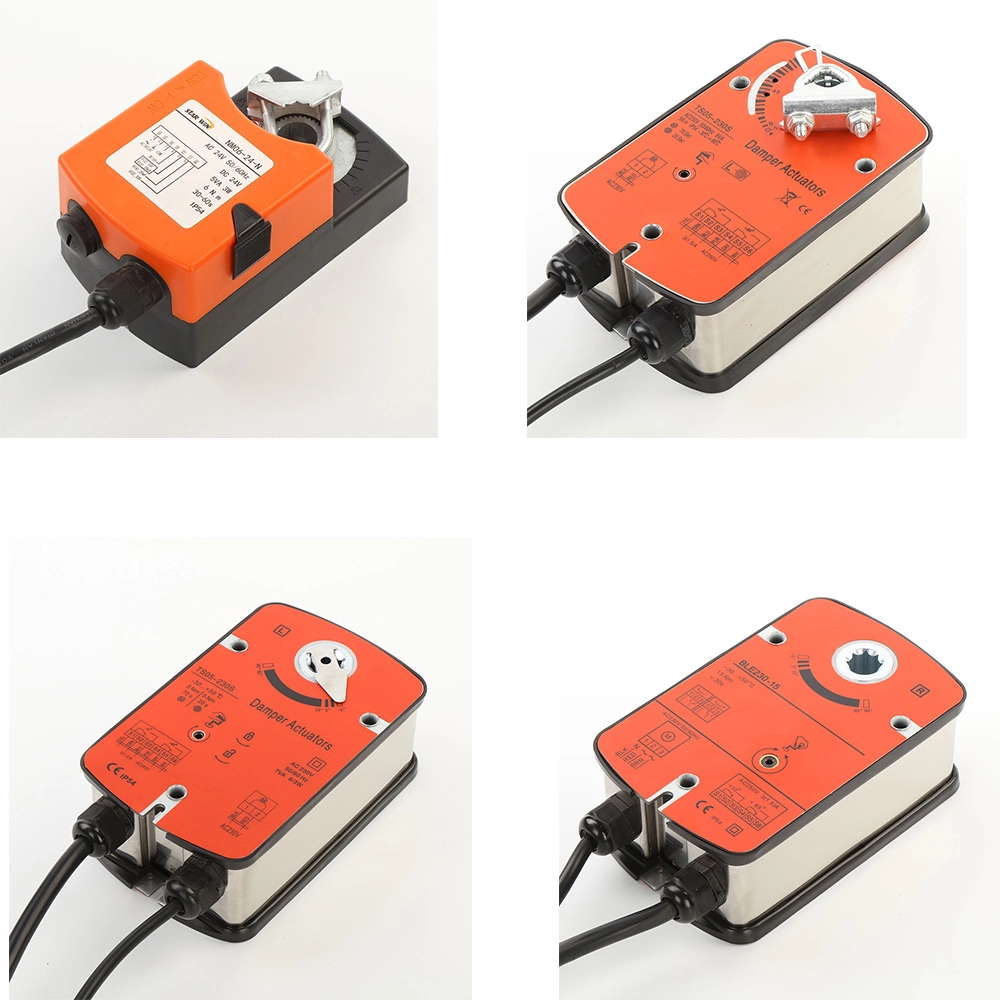

| TS05 Spring Return Damper Actuators | Power supply | AC/DC24V, AC230V | ||
| Allow error | 10% | |||
| Allow error | 5N.m | |||
| Run time(Motor drive) | <30S | |||
| Spring Return Time | 15...20S | |||
| Operating power | 6...8VA | |||
| Standstill power | 3VA | |||
| Output angle | 90°(95°Max) | |||
| Control signal TS... | 2point on/off control | |||
| Universal coupling | 7-12mm(squ) or Φ10-Φ16mm(cir) | |||
| Overload protection | Automatic | |||
| Protection class | IP54 | |||
| Ambient conditions | -10ºC ~+55ºC 0-99%Rh | |||
| Noise level(max) | Motor< 45dB(A) | |||
| Noise level(max) | Spring return< 62dB(A) | |||
| Weight | 1.8...2.2Kg | |||
