Product Description

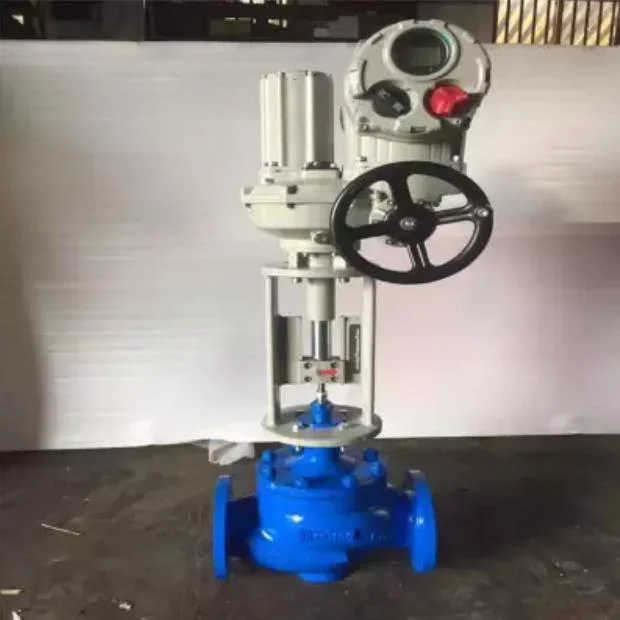

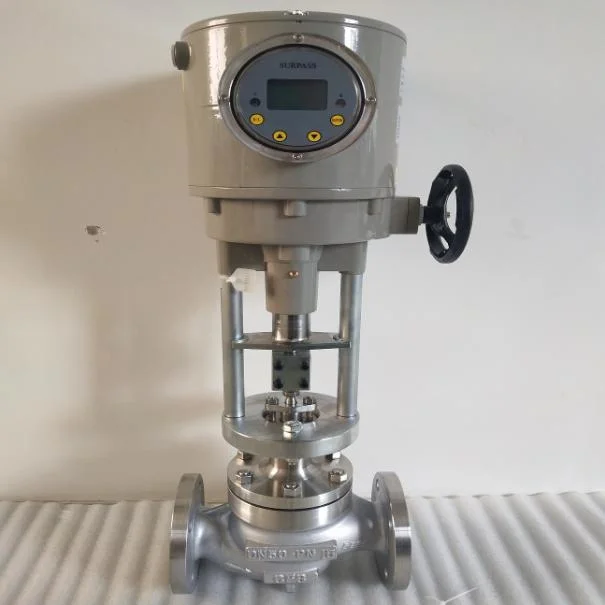

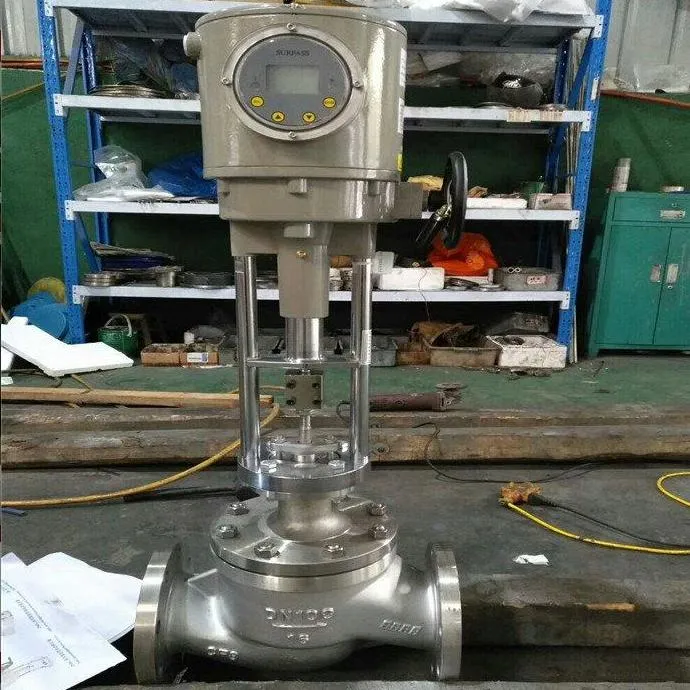

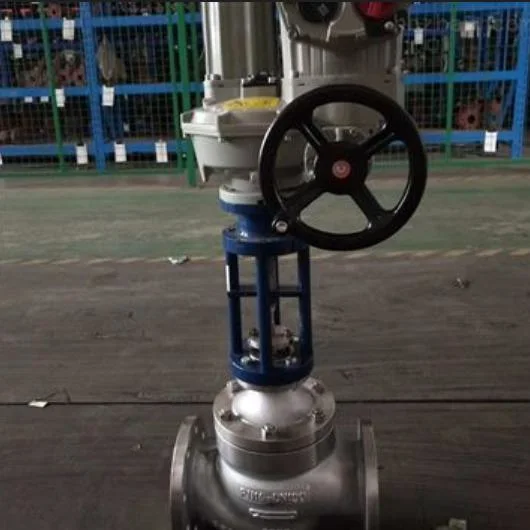

T947H Electric Actuated Single Seat Globe Control Valve
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve core, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
T947H Electric Actuated Single Seat Globe Control Valve:
Advantages
1, To achieve greater CV value and wider adjustable ratio
S shaped structure body is generated from the fluid analysis in a unique, can be suppressed by flow path shape complex and eddy current as well as flow path suddenly expand caused by complex and irregular flow phenomenon, which brings the medium flow, high efficiency in addition, guide wing cage type valve can be unstable fluid efficiently sleeve around the into the sleeve, due to these features, the CV3000 series valve with the original V series valve compared with a 30% increase in CV, and the adjustable ratio was enlarged from 30:1 to 50:1 (add attachments of up to 75:1), so it can be used to control a wide range of load changes.
2,High precision flow characteristics can bring the "ideal" flow
Adopting high precision flow characteristic curve as the standard technical parameters, to achieve the "ideal" flow theory. The process gain stability; computer simulation, valve opening degree of process control conditions, can realize flexible control.
3,Small volume and light weight
CV3000 series valve due to film the spring type small lose simple mechanical structure of the power of the executive body, thus successfully greatly reduced height, realize the miniaturization, according to multi spring diaphragm actuator and S shaped valve, control valve of CV3000 type and V type series valve compared can achieve 30% - 40% a small, light, efficient use of space has contributed to the.
4,Full specifications, wide use
CV3000 series valve has from the vacuum valve to the valve, varied from low to high temperature control. Widely used in petroleum refining, petrochemical, chemical fertilizer, chemical, steel, metallurgy, papermaking, power, light industry and other automation control process.
T947H Electric Actuated Single Seat Globe Control Valve:
Main Parts Material:
Valve Body/Cap: S.S304.
Valve Core/ Seat: S.S304, Stellite.
Packing: PTFE.
Gasket:: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt:: S.S 304.
T947H Electric Actuated Single Seat Globe Control Valve:
Main Dimensions
T947H Electric Actuated Single Seat Globe Control Valve:
This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve core, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.
Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.
T947H Electric Actuated Single Seat Globe Control Valve:
Advantages
1, To achieve greater CV value and wider adjustable ratio
S shaped structure body is generated from the fluid analysis in a unique, can be suppressed by flow path shape complex and eddy current as well as flow path suddenly expand caused by complex and irregular flow phenomenon, which brings the medium flow, high efficiency in addition, guide wing cage type valve can be unstable fluid efficiently sleeve around the into the sleeve, due to these features, the CV3000 series valve with the original V series valve compared with a 30% increase in CV, and the adjustable ratio was enlarged from 30:1 to 50:1 (add attachments of up to 75:1), so it can be used to control a wide range of load changes.
2,High precision flow characteristics can bring the "ideal" flow
Adopting high precision flow characteristic curve as the standard technical parameters, to achieve the "ideal" flow theory. The process gain stability; computer simulation, valve opening degree of process control conditions, can realize flexible control.
3,Small volume and light weight
CV3000 series valve due to film the spring type small lose simple mechanical structure of the power of the executive body, thus successfully greatly reduced height, realize the miniaturization, according to multi spring diaphragm actuator and S shaped valve, control valve of CV3000 type and V type series valve compared can achieve 30% - 40% a small, light, efficient use of space has contributed to the.
4,Full specifications, wide use
CV3000 series valve has from the vacuum valve to the valve, varied from low to high temperature control. Widely used in petroleum refining, petrochemical, chemical fertilizer, chemical, steel, metallurgy, papermaking, power, light industry and other automation control process.
T947H Electric Actuated Single Seat Globe Control Valve:
Main Parts Material:
Valve Body/Cap: S.S304.
Valve Core/ Seat: S.S304, Stellite.
Packing: PTFE.
Gasket:: Graphite.
Membrane Cover: A3.
Spring: 60Si2Mn.
Valve Stem: S.S 304.
Nut/Bolt:: S.S 304.
T947H Electric Actuated Single Seat Globe Control Valve:
Main Dimensions
| DN | 10 | 12 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | |||||
| Cv | Linear | 1.8 | 2.8 | 4.4 | 6.9 | 11 | 17.6 | 27.5 | 44 | 69 | 110 | 176 | 275 | 440 | 690 | 1100 | 1760 | ||||
| Equal Percentage | 1.6 | 2.5 | 4.0 | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | |||||
| Movement L(mm) | 10 | 16 | 25 | 40 | 60 | 100 | |||||||||||||||
| Effective Area(cm2) | 280 | 100 | 600 | 1000 | 1600 | ||||||||||||||||
| SignalRange(Kpa) | 20~100, 40~200,80~240;20~60,60~100 | ||||||||||||||||||||
| Power Source (MPa) | 0.14~0.4 | ||||||||||||||||||||
| Flow Characteristic | Linear or Equal Percentage | ||||||||||||||||||||
| Adjustable Ratio | 50:1 | ||||||||||||||||||||
| Working Temp. (ºC) | Normal Temp, | -20~200, -40~250, -60~450 | |||||||||||||||||||
| Cooling Type | -40~450, -60~450 | ||||||||||||||||||||
| High Temp | 450~560 | ||||||||||||||||||||
| Low Temp. | -60~100, -100 ~-200, -200 ~-250 | ||||||||||||||||||||
T947H Electric Actuated Single Seat Globe Control Valve:
DN | 20~450mm |
PN | Class150~2500 |
Applicable temperature range | -30ºC~260ºC (single-seat structure) |
-196ºC~570ºC(double-seat structure) | |
Trim features | sleeve guided type, balanced trim structure |
Body type | straight-through type, angle type |
Bonnet type | standard type, heat dissipation type, cryogenic type |
Flow characteristic | equal percentage, Linear, quick open |
Shut-off class | ASME B16.104 V (standard metal seat) |
AS ME B16.104 V I (shut-off soft seat) | |
Pipe connection type | flange type, Butt welding type |
Actuator type | pneumatic diaphragm actuator |
pneumatic piston actuator | |
Electric actuator |
