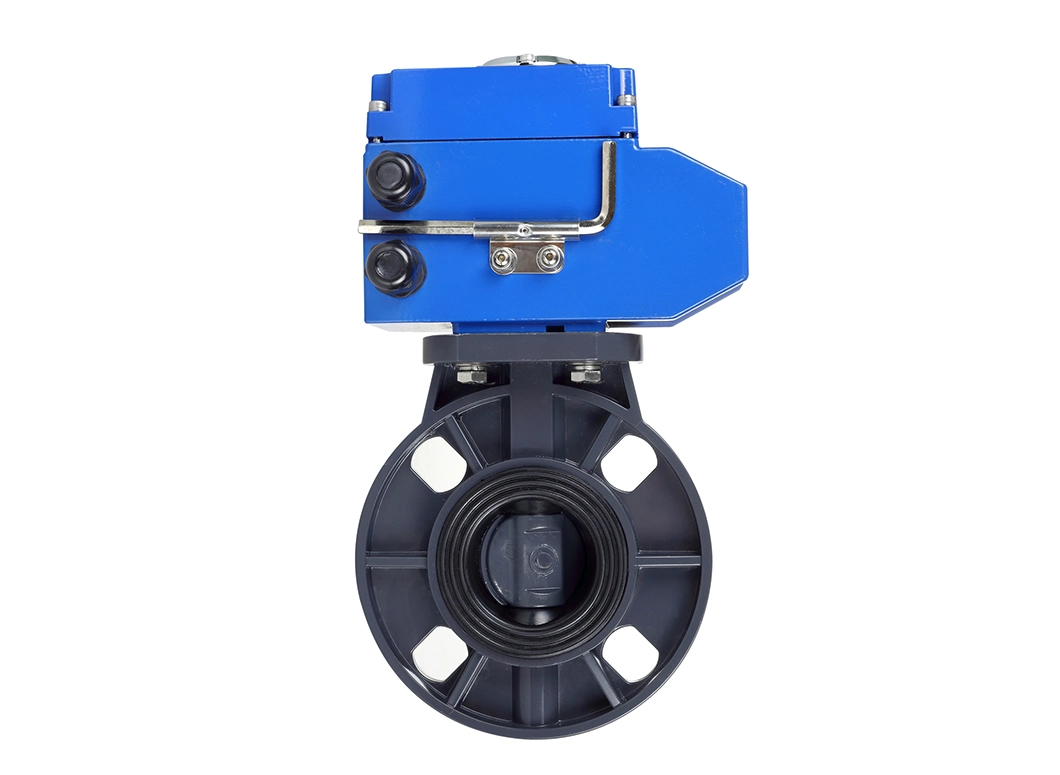

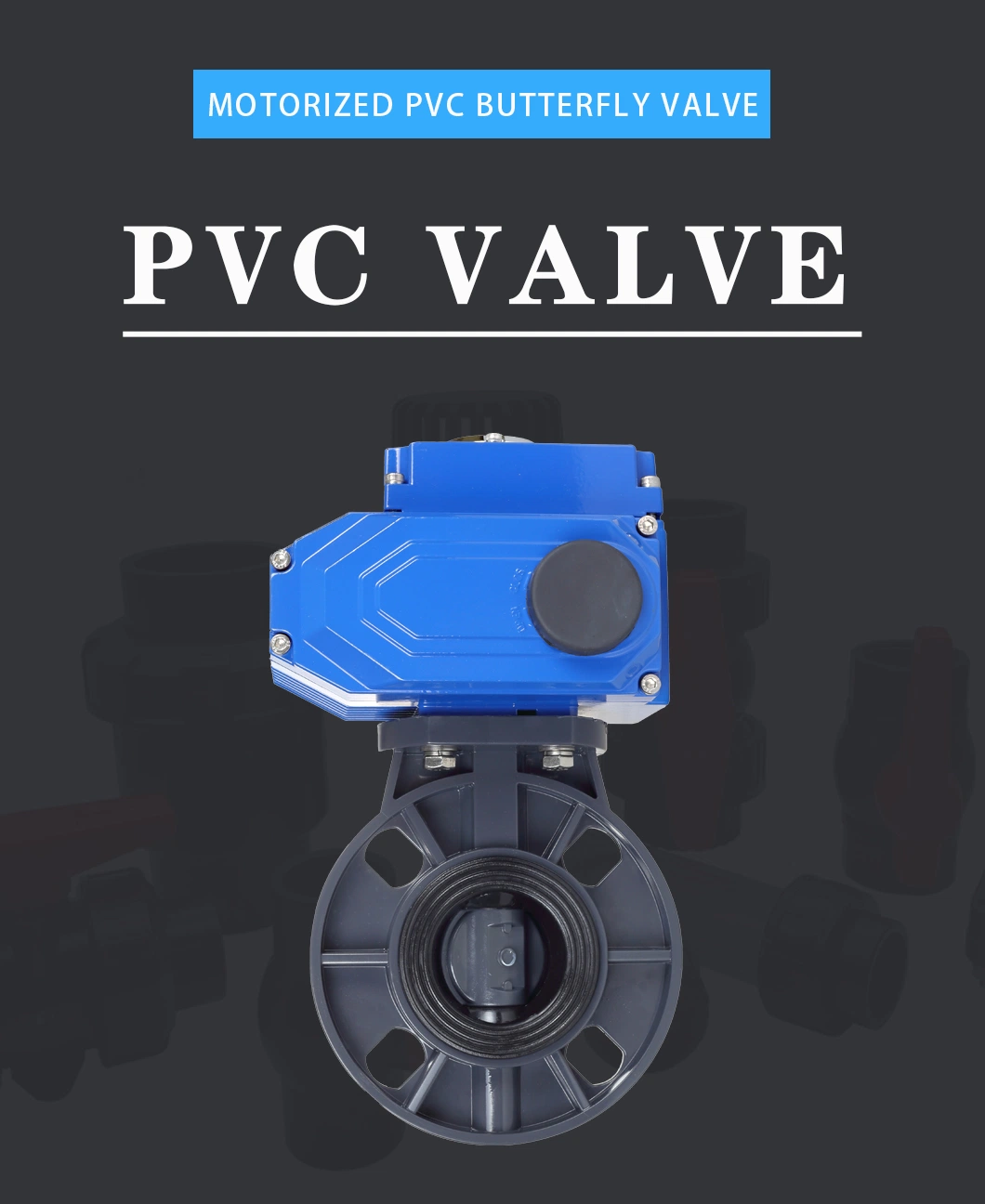

220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve

Get high-quality 220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve from our factory. Contact us for reliable and durable valves.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Parameters
  • Product Description
  • Company Profile
Overview

Basic Info.

Structure
Centre Sealing
Seal Form
Force Sealed
Valve Stem
Normal
Work Pressure
Low Pressure (Pn<1.6mpa)
Working Temperature
Normal Temperature (-40°C<T<120°C)
Material of Seal Surface
Soft Sealed
Valve Body
Injected
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Color
Dark Grey
Shape
Round
Transport Package
Cartons
Specification
2"~8"
Trademark
XITA
Origin
Changzhou Jiangsu
HS Code
8481804090
Production Capacity
1500mts Per Year

Product Description

Product Name:PVC/PPH/PVDF/PVC/ electric butterfly valve

Motorozed actuators to control PVC butterfly valve body , open/shut and regulating type actuators for optional, different materials of valves are available.

Basic specification
Size:DN50~DN500 (2 inch ~ 16 inch)
Wafer connection:DIN PN10; ANSI CL150; JIS 10K
Material:PVC-U;PVC-C;PVDF;PP-GF;PP-H
Actuator:Electrical
Operating type:Open/Shut, Regulating
Power supply:DC24V;AC220V;AC380V

Feature of valve
Different materials of butterfl y valve for optional.
Open/Shut and regulating type of actuator for optional.
Different power supply of actuator for optional.
Other accessories are optional if request.
Product Description
PVC Butterfly Valve  Gear Type for Water Supply


 MORE DETAILS
 Materials:  a) Body:  UPVC

                        b) Disk:   UPVC

                        c) Stem:  Carbon steel 45#

                        d) Lever handle: ABS

                        e) Seat: NBR, TPE, EPDM, FPM (Viton A)


                        f) Locking plate: ABS

Product Parameters



Item Unit Standard Value Testing Standard
Density kg/m2 1350~1460 ISO 1183
Vicat ºC »74 ISO 2507
Tensile Strength MPa >40 ISO 6259
Impact Strength KJ/m2 11.0 ISO 179
Vertical Retraction Ratio % <5 ISO 2505
Drop-weight Test (0 *C) TIR <10% IS 3127

Polyvinyl chloride(PVC) is polymerized of monomer vinyl chloride (VCM).It is used for construction, sewerage and other pipe applications because of its biological and chemical resistance and workability. It's more effective than traditional materials such as copper, iron or wood in pipe and profile applications.
UPVC pipes are in widespread use in a number of industries, ranging from residential plumbing to complex water treatment systems. Because of the material properties of UPVC/CPVC pipes, they are highly valuable as a thermo-resistant structure,fire retardant fabric, and as a high quality water conduit in many construction applications. UPVC/CPVC pipes are superior to most other modern materials due to environmental friendliness chemical resistance, inherent toughness, heat resistance, and being electrically non-conductive/non-corrosive
Max working temperature of UPVC pipes is 60ºC, and they are usually used below 45ºC. They are applied for water supply system, agriculture irrigation system, and pipes for air conditioning.

220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve

Product Description

Adavantages
1. High quality with reasonable price
2. Oven test no sign of bubble or cracks
3. Simple installation and Good electrical insulation
4. Water quality unaffected and Small resistance to fluidity
5. Rustless, oxidation-resistant, anti-corrosion and environment-friendly


The properties of the products
Light weight
The weight per unit is only 1/6 of the cast-iron pipes, so the transport is quite convenient.
High strength
The strength can get to 45mpa
Low resistance
The internal surface of the pipe is smooth with no dirt and no blockage. The loss is 30% lower than that of the cast-iron pipes.
Corrosion resistance
It has good quality of high acid resistance, alkali resistance, chemicals resistance and electrochemistry resistance, so the point of corrosion will not occur during the use.
Easy installation
It adopts the glue and soft joining. Therefore, the installation is quite easy and sealing is reliable.
Long service life
The service time can reach more than 50 years under the normal working pressure.
Low cost
The cost of transport and installation is low, and the total engineering cost is 30-40% lower than of the cast-iron pipes.
Non-toxic and sanitation
The product conforms to the standards of the drink water and water transported has no second pollution.

220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve

Company Profile

ABOUT US
Changzhou Xita Plastic Co., Ltd is a professional supplier of UPVC/CPVC/PE/PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
We could provide products as follows:

1. PVC pipe fittings-Cement PN10: 20mm~400mm

2. PVC pipe fittings-rubber ring fittings PN10: 63mm~355mm

3. PVC pipe fittings-Cement PN16: DN15~DN200

4. PVC Valves: Ball valves, true union valves, butterfly valves, check valves, bottom valves, Y strainers

5. PPR pipe fittings

6. PE pipe and fittings

7. Distribution: Drier for injecion machines; PVC/PE foam tapes for sealing; PET tapes


We insist in the principal of ""Quality First, Clients First". Your satisfaction is our eternal pursuit.  We Strictly follows ISO9001 quality system to arrange manufacturing. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, Xita Plastic ensures that every single product meets the corresponding inspection standard.
"Xita Plastic" warmly welcomes friends and clients all over the world for further cooperation220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve220V EPDM Seal UPVC Wafer Plastic with Electric Actuator Motorized PVC Butterfly Valve
