Basic Info.
Model NO.
VAT032-1/8′′
Acting Type
Double Acting
Material
Aluminum
Customized
Customized
Structure
Rack and Pinion
Size
Vat052 Vat063 Vat075 Vat083 Vat092 Vat105 Vat125
Type
Pneumatic Actuator
Condition
New
Transport Package
Inner Box, Outer Carton...Pallet
Specification
CE, ROHS, SGS
Trademark
VPC Pneumatic
Origin
China
HS Code
8412390000
Production Capacity
500000000PCS/Year
Product Description

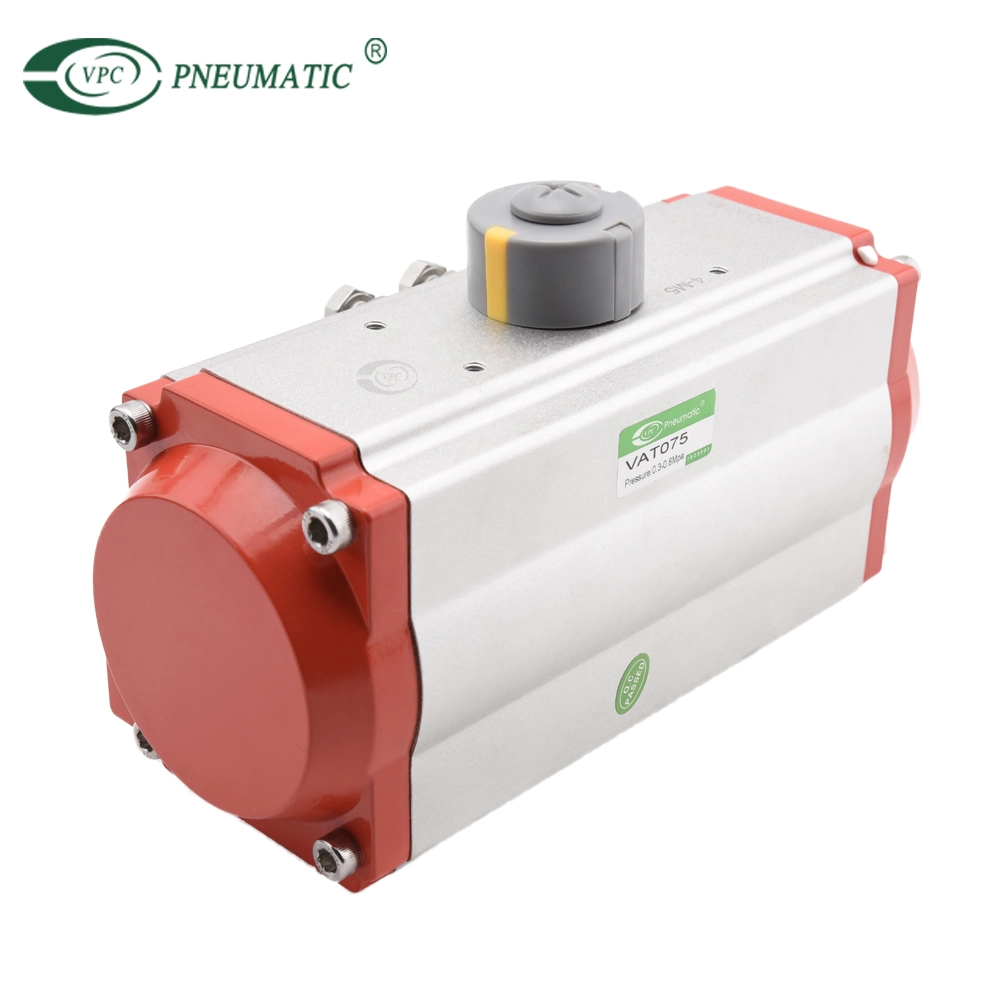

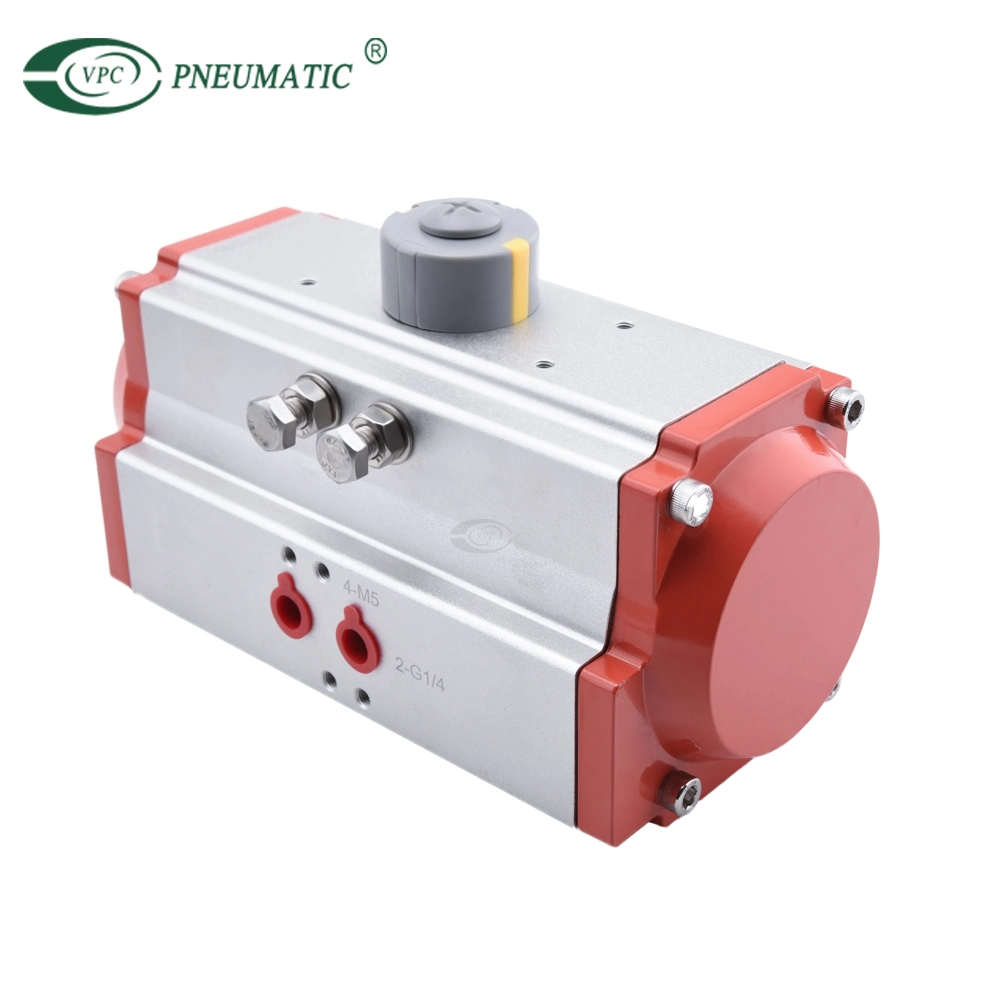

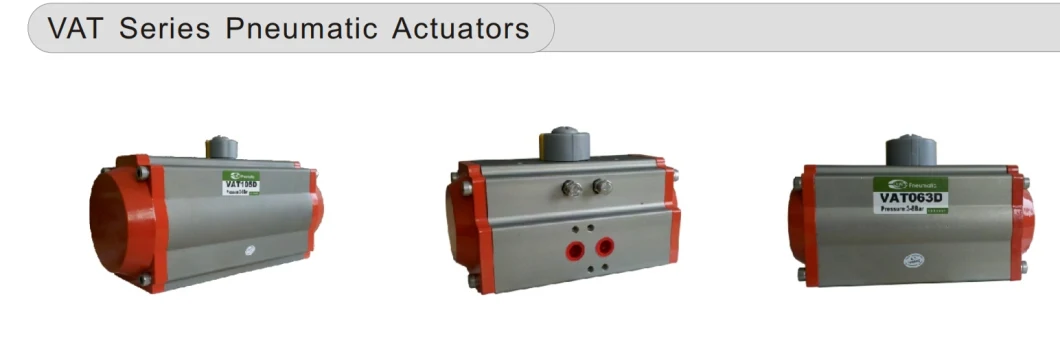

VAT Single Spring Return Electric Aluminum Pneumatic Actuator
* All listed output torques are expressed in inch pounds of torque (in. lbs.).
* Charts for available air pressure are expressed in pounds per square inch (P.S.I.).
* FLOWX actuators offer ±5° adjustment in the open and closed positions on DA52 through DA-125 models.
* For all other models, adjustment is in the open position only.
* The closed position is 0° fixed. Optional retrofit kits are available to allow for adjustment in both open and closed positions on the DA-160, DA-200 and DA-270 models.
* Charts for available air pressure are expressed in pounds per square inch (P.S.I.).
* FLOWX actuators offer ±5° adjustment in the open and closed positions on DA52 through DA-125 models.
* For all other models, adjustment is in the open position only.
* The closed position is 0° fixed. Optional retrofit kits are available to allow for adjustment in both open and closed positions on the DA-160, DA-200 and DA-270 models.
| Product Name | aluminum pneumatic rotary actuator |
| PRESSURE RANGE | Max Pressure: 140psig (10 Bar) |
| TEMPERATURE RANGE | High: -20°F to 330°F (-29°C - 166°C), Low: -40°F to 210°F (-40°C - 99°C), Standard: -4°F to 200°F (-20°C - 93°C) |
| BODY MATERIALS | Anodized 316 Stainless Steel, Electroless Nickel Plated Body Exterior, Extruded Aluminum Alloy, Hard Anodized Body Exterior, Seacorr Coated Body Exterior |
| ACTUATOR ENCLOSURE RATINGS | IP 65, NEMA 4/4X |
| Color | silver |
| Accessories of pneumatic actuator | limit switch box, solenoid valve, positioner. |
Low cost, compact design, long working life
Operating Media
* Dry or lubricated air,or inertia gas,which should be compatible with inside parts and lubricant of the cylinder
*The temperature of the operating media is a minimum of -20ºC
*The dimension of the impurity particle is at the largest of 30μm.if the position is needed,the dimension may be at the largest of 5μm
*The temperature of the operating media is a minimum of -20ºC
*The dimension of the impurity particle is at the largest of 30μm.if the position is needed,the dimension may be at the largest of 5μm
