Basic Info.
Product Description

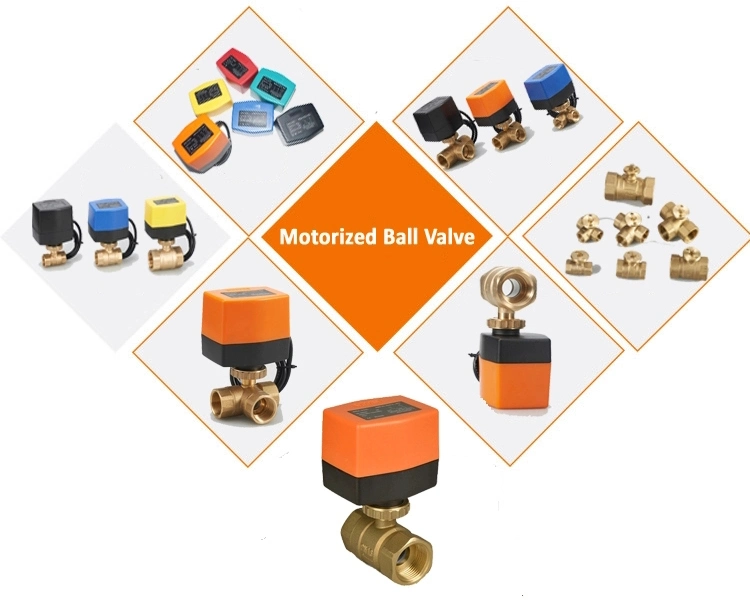

Description of Motorized Water Valve
Our motorized ball valve consists of on/off type or 3-point type actuator… series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipment.
Application of Motorized Water Valve
HVAC system, heating system, Water treatment system, Industrial equipment
Operational mode of Motorized Water Valve
motorized ball valve is motor-operated by a type of WRA-63…, and WRA-63…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.
Technical data Valve body:
Medium: cold/hot water, with 50% glycol
Temperature of medium: 2°C...90°C
Rated pressure: PN20
Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH
FAQ
Q1: Can you provide OEM service?
Yes, we can. But you shall send the authorization letter to us so that we can put your
company LOGO on the products legally.
Q2: Packaging and shipping
Normally it's packed in carton. Or it can be packed as your requests.
Q3: How can I contact you?
Please contact us by Trademanager, Email, Whatsapp and Phone, also warmly welcome you to visit our company at your convenience.
