Product Description

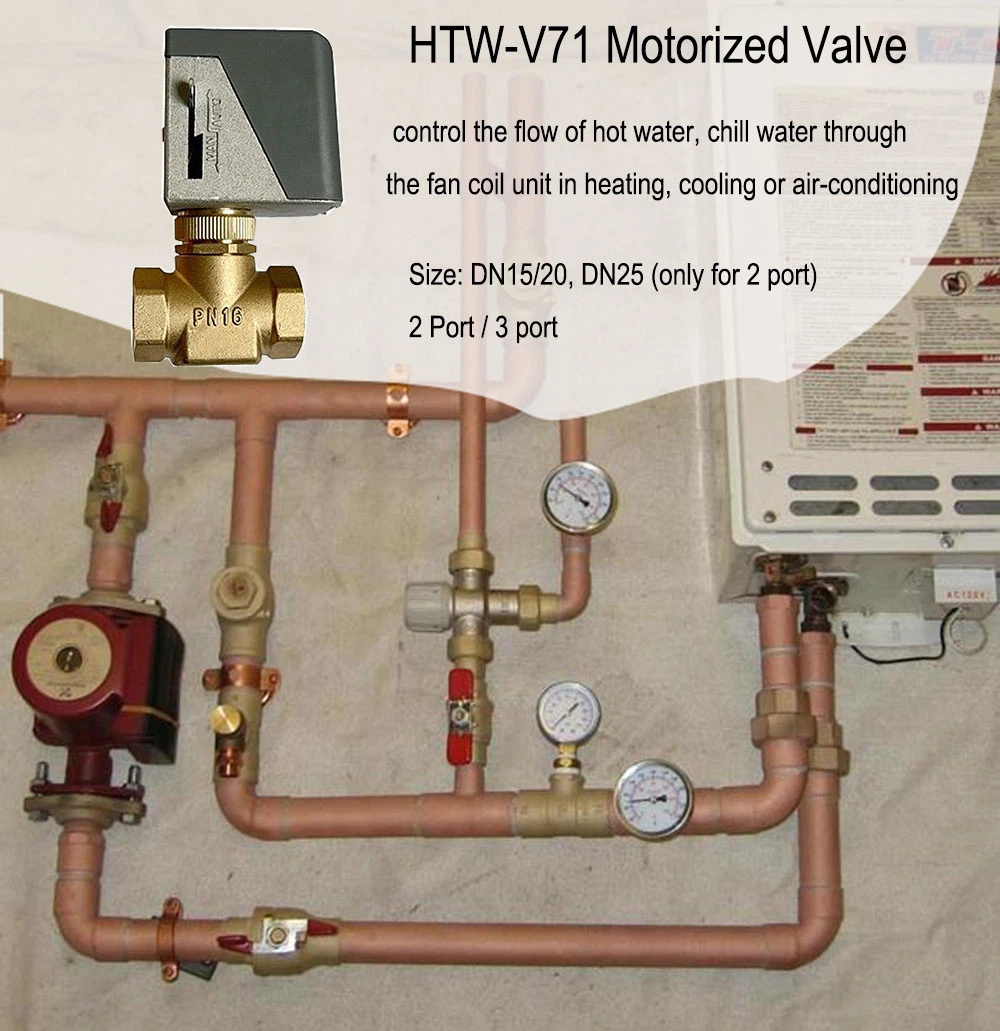

2 Way Motorized Globe Valve 3 Way Brass Solenoid Gate Valve for Fcu Zone Water Flow Control with Manual Handle
>> General
>>Characteristics & Materials
¤Actuator: Stainless steel plate, ABS plastic cover
¤Valve Body: Forged Brass
¤Stem: Brass/Stainless steel
¤Seat: Die-casting Aluminum Alloy
¤Paddle: Nitrile-butadiene rubber(NBR)
>>Actuator parameters
| Model No. | Rated Voltage | Power Consumption | Actuator | Cooperation time with Thermostat | N.W.(Kg) |
| V71-8503 | AC220V±10% | 7W | Single direction motorized drive valve spring regain | Fully open:10s after on. Fully close:5s after power off | 0.3 |
| V71-8203 | AC110V±10% | ||||
| V71-8003 | AC24V±10% |
>>Valve Body parameters
| No | Model | Caliber | Body Structure | Kv(Cv) Value | Closing Pressure Mpa |
| 1 | V71-215 | 1/2'' (15mm) | 2 way valve | 2.2(2.5) | 0.2 |
| 2 | V71-220 | 3/4'' (20mm) | 3.0(3.5) | 0.18 | |
| 3 | V71-225 | 1'' (25mm) | 6.9(8.0) | 0.15 | |
| 4 | V71-315 | 1/2'' (15mm) | 3 way valve | 2.2(2.5) | 0.2 |
| 5 | V71-320 | 3/4'' (20mm) | 3.0(3.5) | 0.18 | |
| 6 | V71-325 | 1'' (25mm) | 6.9(8.0) | 0.15 |
>>Dimensions

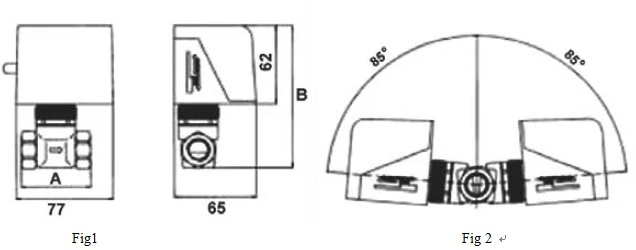

>>Installation Instruction 1.Dimensions Diagrams, Pleasse refer to fig 1
2.The valves can be mounted in horizontal or vertical piping, When installed in horizontal piping, the actuator must be above the valve body, and it can be titled left or right but it must NOT be below 85 degrees from vertical. Please refer to Fig 2.
3.If the valve as mounted in vertical piping, please be sure the cover of motor is waterproof.
4.When installing the actuator to a normally closed valve, the actuator must be placed in the manually open position by using the manual operating lever. The first time the valve operated electrically, the manual operating lever of the actuator will transfer to the automatic poison.
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
