Basic Info.
Model NO.
WRA-42...+W8BV2.
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Relief Valve
Temperature
Normal Temperature
Standard
ISO9001, Ppap
Application
Industrial Usage, Water Industrial Usage, Household Usage
Medium
Cold/Hot Water, with 50% Glycol
Temperature of Medium
2ºC...90ºC
Rated Pressure
Pn20
Transport Package
Carton with Pallet
Specification
DN15, DN20, DN25
Trademark
Winvall
Origin
China
Product Description
Description

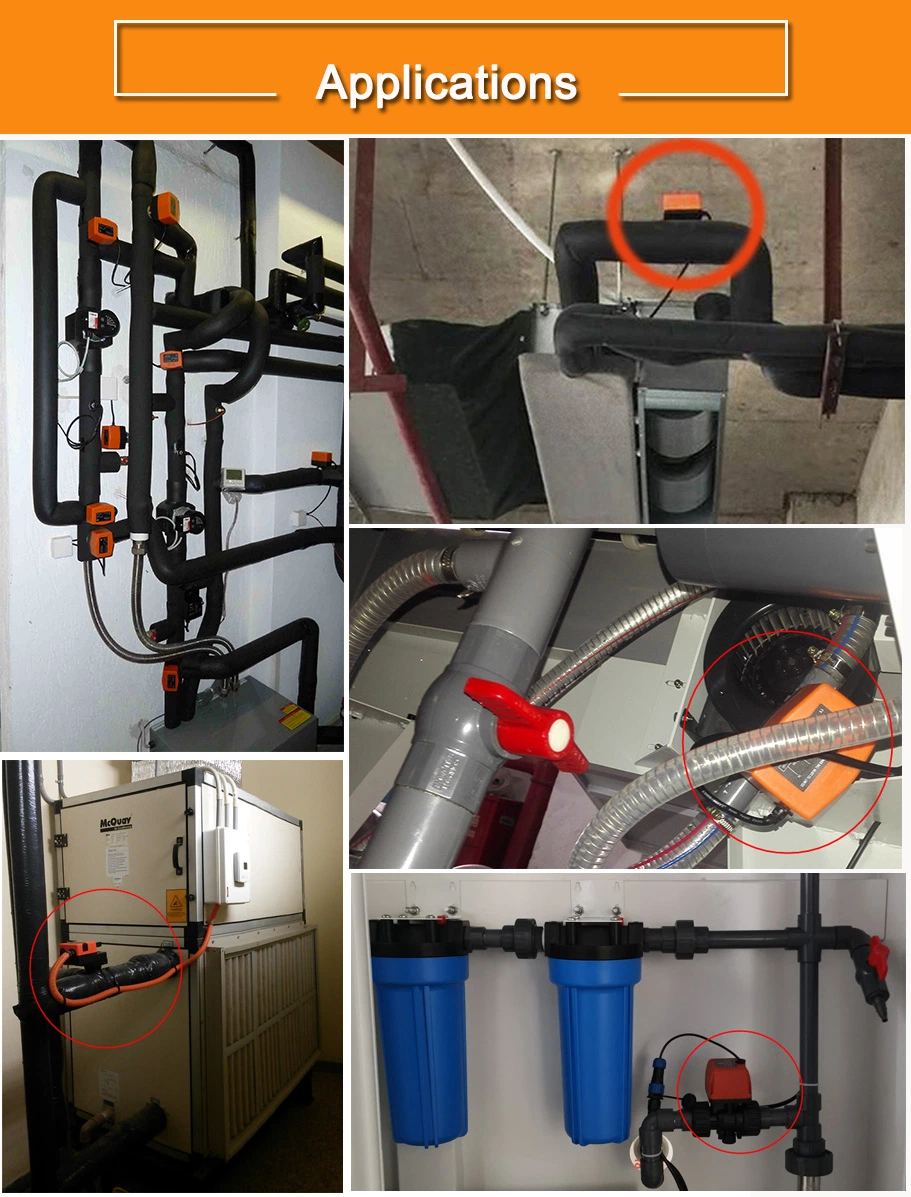

Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV... series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner mini motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Operational mode
Winner DC motorized ball valve is motor-operated by a type of WRA-42…, and WRA-42…A actuator. The actuator is controlled by a modulating on/off or 3-point control system and move the ball of the valve, to the opening position dictated by the control signal.
Technical data:
Valve body:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH
Valve body: Hpb59-1 Seal: ball: EPDM+PTFE
Ball: PTFE+EPDM with O-ring Stem: EPDM O-rings
| Model No. | Type | Inner Dia. | Inch | Kvs(m3/h) | Pmax(KPa) | Ps(KPa) |
| W8BV215 | 2-way | 12mm | 1/2" | 8.6 | 1000 | 1400 |
| W8BV220 | 15mm | 3/4" | 21 | 1000 | 1400 | |
| W8BV225 | 20mm | 1" | 26 | 1000 | 1400 |
Actuator

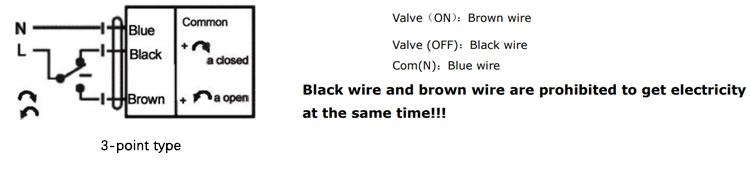

WRA-42... DC 24v / 12V / 3V, 50/60Hz 3-point
Output torque: >2.0N.m Angle of rotation: 90°
Protect rank: IP54 On/off time: 6-12S
| Model No. | Working Voltage | Actuator type | Output torque | Consumption | On/off time | Valve body |
| WRA-4224 | 24VDC±15% | 3-point or on/off | 2.0N.m | 2W | 6-12s | W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325 |
| WRA-4212 | 12VDC±15% | |||||
| WRA-4203 | 3VDC±15% |
