Description

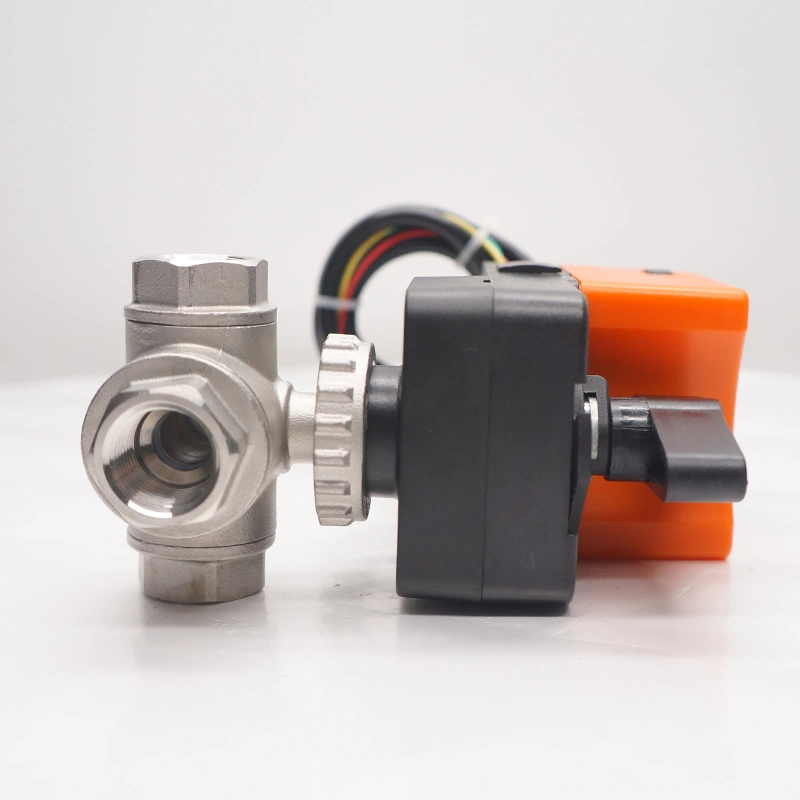

Winner motorized control stainless steel ball valve consists of on/off type or 3-point type actuator and WSBV...series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.
Application
Winner mini motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Technical data:
Valve body
Medium: cold/hot water, with 50% glycol Temperature of medium: 2...120 Centigrade
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: -5...+60 Centigrade ;0...90%RH
Material
Valve body: Stainless Steel SS304 Seal: ball: EPDM+PTFE
Ball: SS304 Stem: EPDM 3pcs O-ring
| Model No. | Type | Dia. | Inch | Pmax(KPa) | Ps(KPa) |
| WSBV315 | 3-way | 15mm | 1/2" | 1000 | 1400 |
Actuator
WVA4-210 24VAC/DC±15%,3-point
Output torque: 10N.m Angle of rotation: 90°
Manual handle Automatic overload protection system
Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.
Protect rank: IP54 Operation time: 50S-90S
WRA4-210 24VAC/DC±15%, 3-point
Brown wire is power on counterclockwise rotation, valve open
Red wire is power on clockwise rotation, valve close
Brown or red wire is power off Valve keep the current position
| Model No. | Working Voltage | Actuator type | Output torque | On/off time | Valve body |
| WVA4-210 | 24VAC/DC±15% | 3-point/on-off | 10N.m | 50-90S | WSBV315 WSBV320 WSBV325 |
