Basic Info.
Model NO.
WRA3-210+W8BV332
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Atmospheric Valve, Water Valve,Motorized Valve
Temperature
Normal Temperature
Standard
ISO9001
Application
Industrial Usage, Water Industrial Usage, Household Usage
Medium
Cold/Hot Water, with 50% Glycol
Temperature of Medium
2ºC...90ºC
Rated Pressure
Pn20
Transport Package
Carton with Pallet
Specification
DN32
Trademark
Winvall
Origin
China
Product Description
Description
Winner motorized control ball valve consists of on/off type or 3-point type actuator and W8BV...series ball valve,which have compact structure,stable operation,excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque.
Application

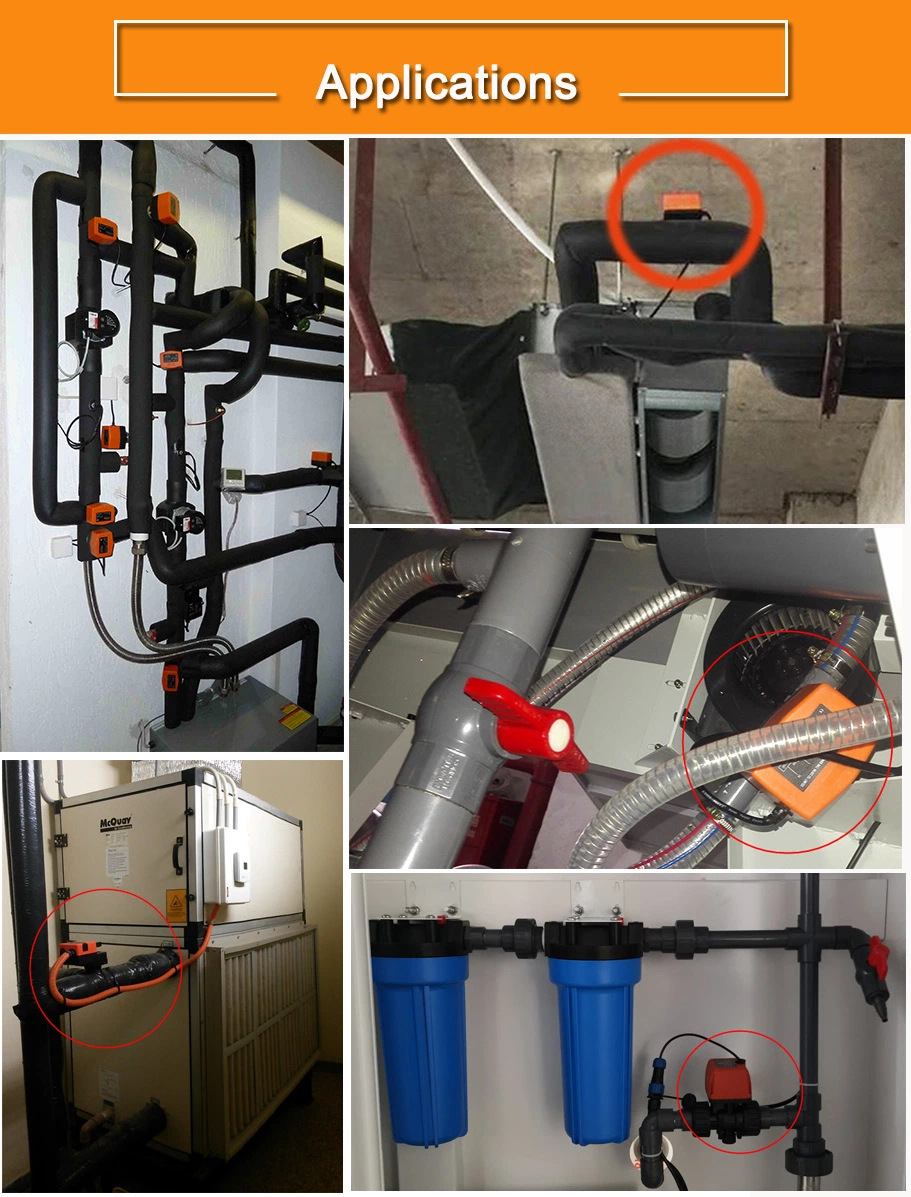

Winner mini motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Technical data:
Valve body
Medium: cold/hot water, with 50% glycol Temperature of medium: 2...90 Centigrade
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: -5...+60 Centigrade ;0...90%RH
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless -steel or chrome plate brass. Stem: EPDM
| Model No. | Type | Dia. | Inch | Kvs(m3/h) | Pmax(KPa) | Ps(KPa) |
| W8BV232 | 2-way | 32mm | 11/4" | 16 | 1000 | 1400 |
Actuator
WRA3-210 AC24V±15% 3-point type
Black wire is power on Valve open
Brown wire is power on Valve close
Brown or blue wire is power off Valve keep the current position
Blue wire is connected to the null wire.
| Model No. | Working Voltage | Actuator type | Output torque | On/off time | Valve body |
| WRA3-210 | 24VAC±15% 50/60Hz | 3-point | 10N.m | 42S | W8BV215 W8BV220 W8BV225 W8BV232 W8BV240 W8BV250 |
