Product Description
Description

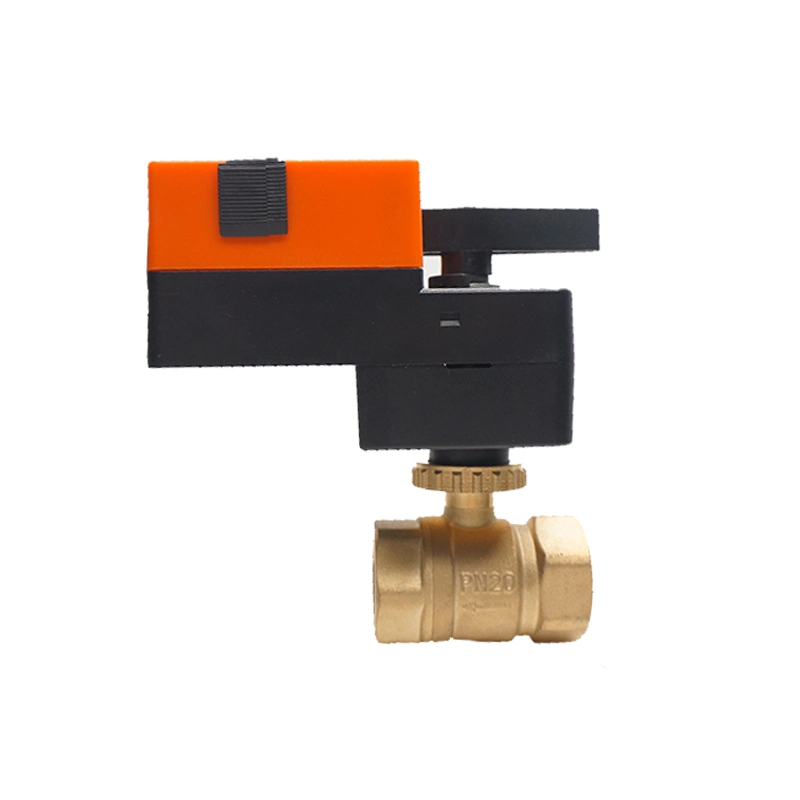

Winner motorized control ball valve consists of WAV4-... series rotary actuator and W8BV...series ball valve. Equal percentage flow characteristic guarantees the valve performances of stability.
Application
Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.
Technical data:
Valve body
Medium: cold/hot water, with 50% glycol Temperature of medium: 2...90 Centigrade
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: -5...+60 Centigrade ;0...90%RH
Valve type: 2-way
Material
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: stainless steel brass Stem: EPDM
Valve connector: PC Valve spindle: aluminum alloy
| Model No. | Type | Dia. | Inch | Kvs(m3/h) | Pmax(KPa) | Ps(KPa) |
| W8BV240 | 2-way | 40mm | 1 1/2" | 25 | 1000 | 1400 |

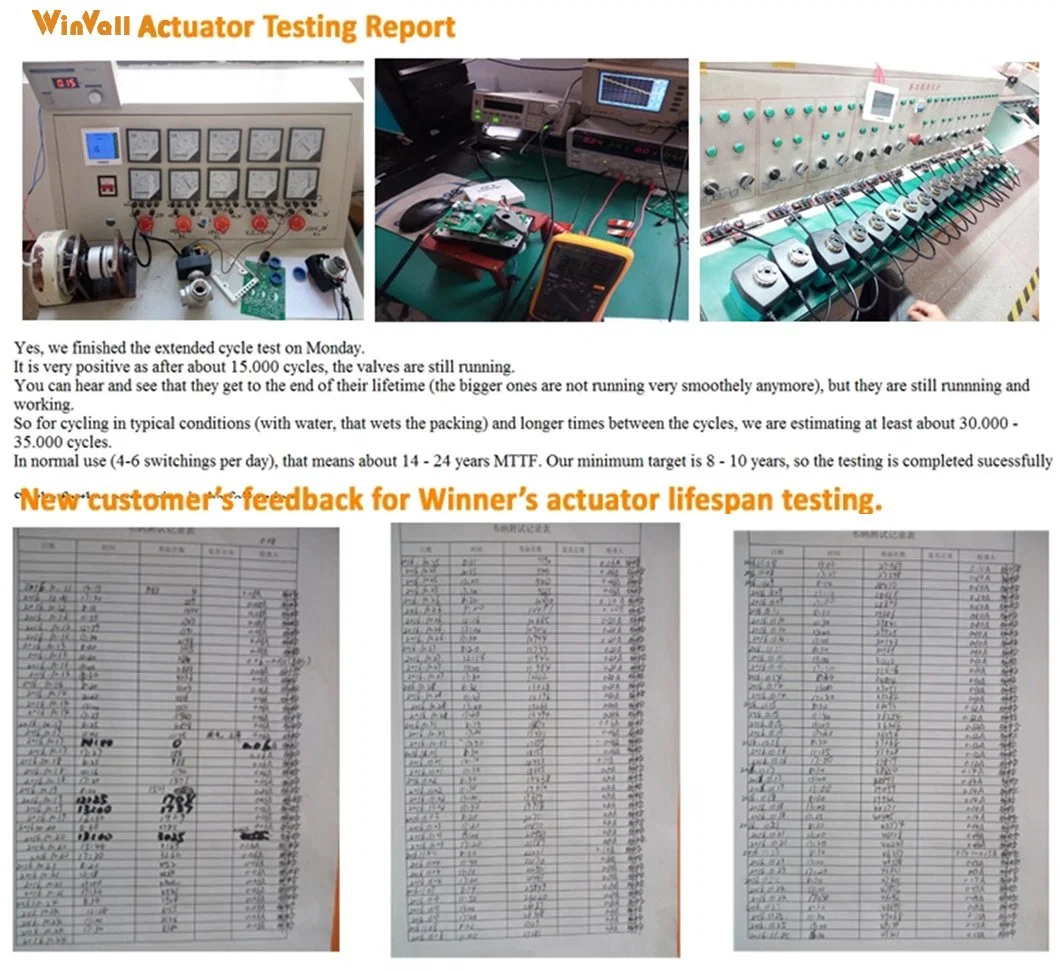

Actuator
WVA4-3… 24VAC/DC±15%, proportional (0-10VDC/0-20mA, 2-10VDC/4-20mA)
Black wire and brown wire are the power wire.
Yellow wire accept 0-10V control signal to control the valve's open angle.
WVA4-3... Flow characteristic
Input 0-10VDC control signal
Flow characteristic: equal percentage
Flow range: 0%-100%
| Model No. | Working Voltage | Actuator type | Output torque | On/off time | Valve body |
| WVA4-306 | 24VAC/DC | 0(2)-10VDC&(0)4-20mA | 6 N.m | 6VA | W8BV232 W8BV240 W8BV250 |
