Basic Info.
Model NO.
XYSP50
Stem Thread Position
Outside Screw Stem Globe Valve
Application
Lining Fluorine Valve, Needle Type Globe Valve, Cryogenic Globe Valve, Plunger Type Globe Valve, Heat Preservation Globe Valve, Forged Steel Globe Valve, Oxygen Globe Valve, Bellows Globe Valve, Flow Control Valve
Standard
DIN, GB, ANSI, BSW, JIS

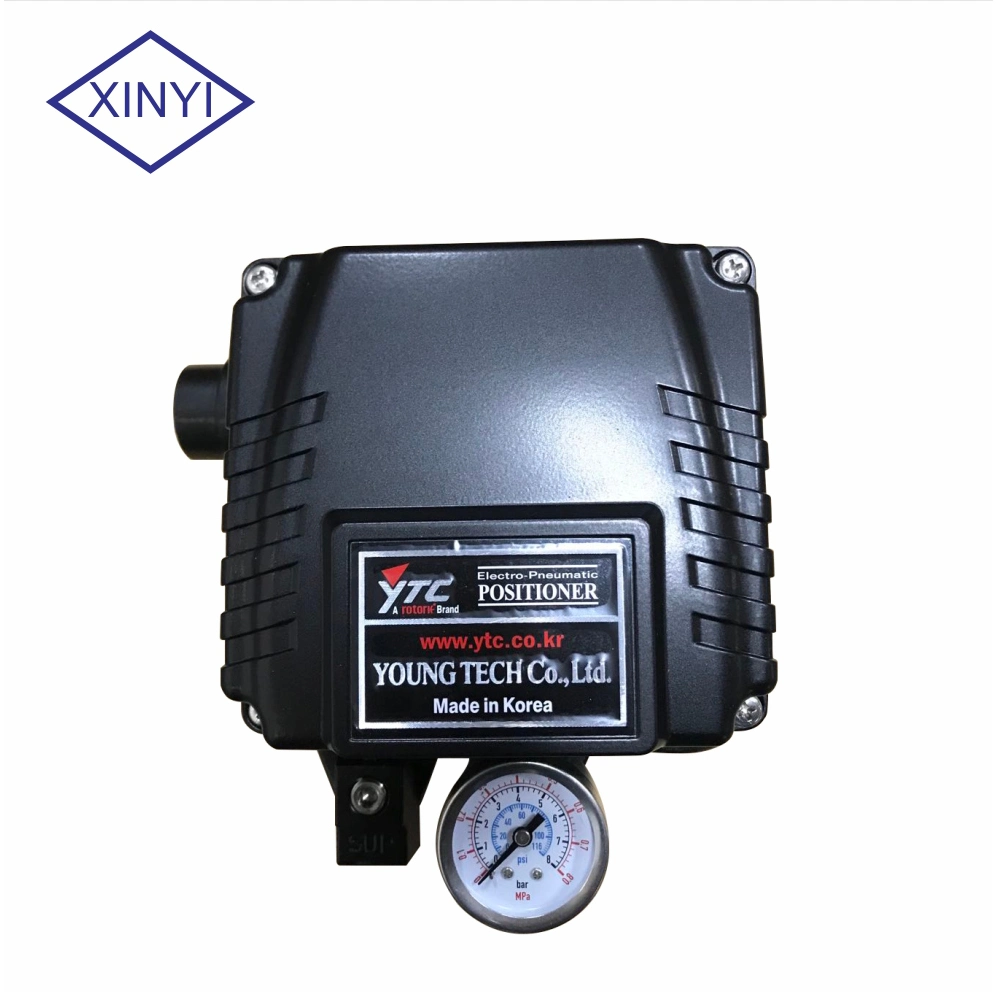

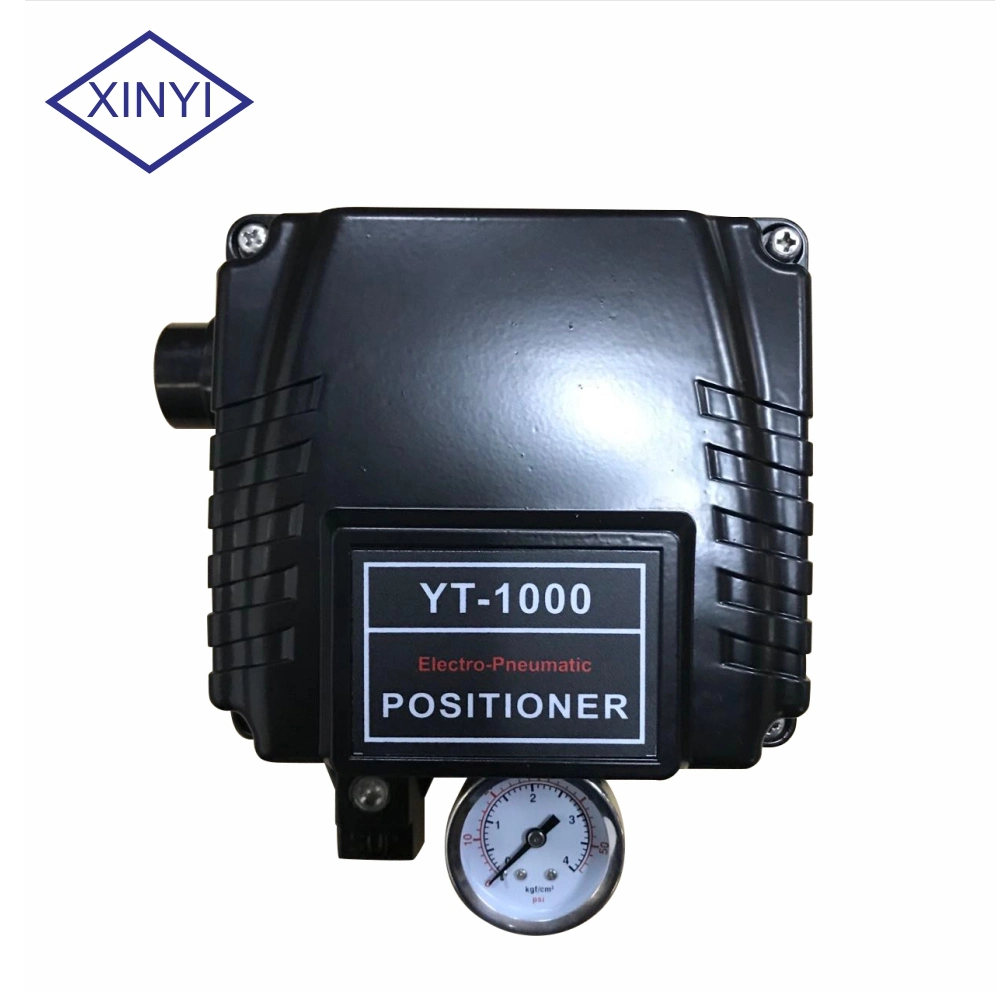

Positioner
SMC,Ytc,National
Control Modes
4-20mA
Nominal Pressure
1.0/1.6MPa
Transport Package
Wooden Box
Specification
standard
Trademark
XinYi
Origin
China
HS Code
8481300000
Production Capacity
100000 Sets/Month
Product Description

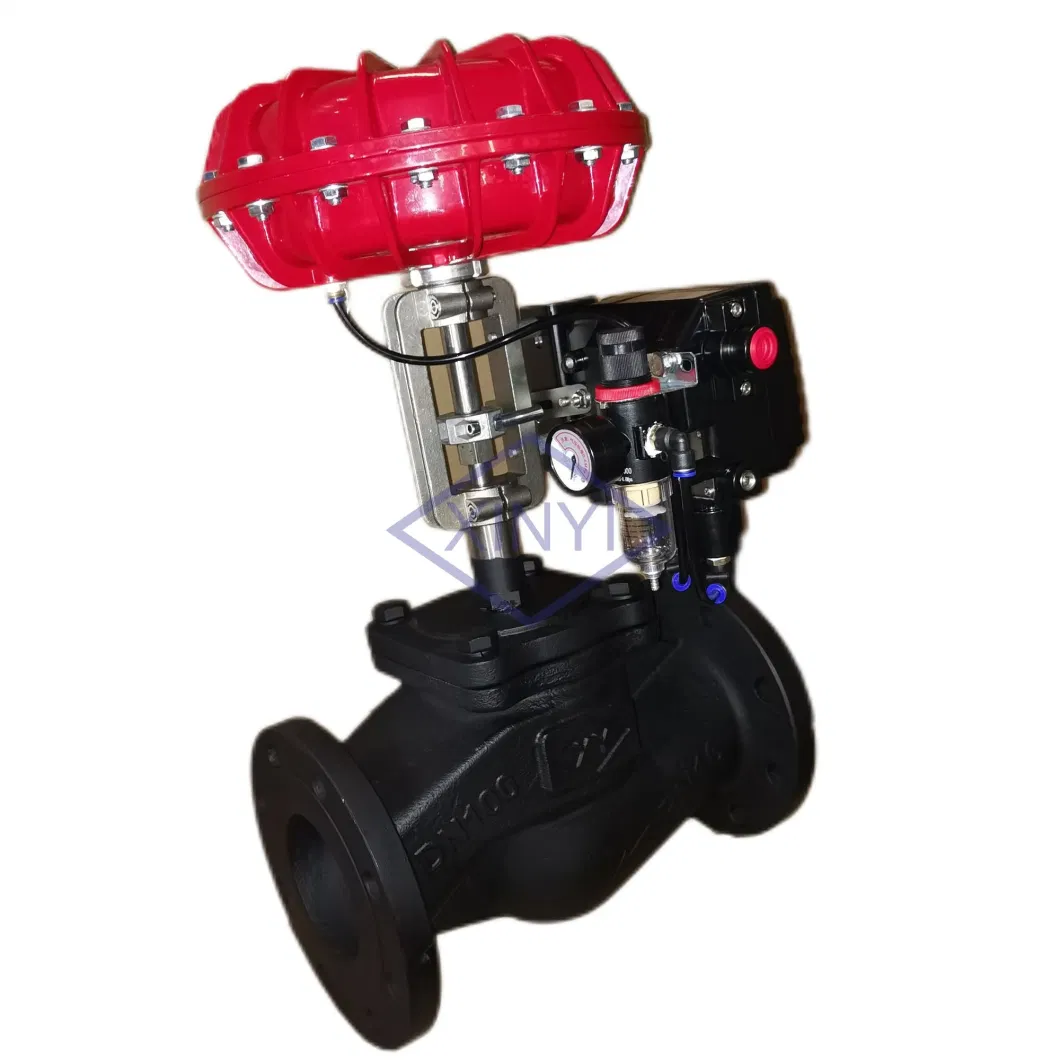

XYSP25 diaphragm pneumatic control wcb body proportional flow control valve With SMC positioner
selection of contol valve:1,According to the working temperature (t) and the suitable fluid to determine valve size.
2,According to the flow rate value (KVS) to determine the calibre of the valve
3,According to the pressure difference (AP) determining forms of the actuator
Applied Fluids:
steam,hot water,gas,coolant,Add and alkali Body material: cast steel,stainless steel

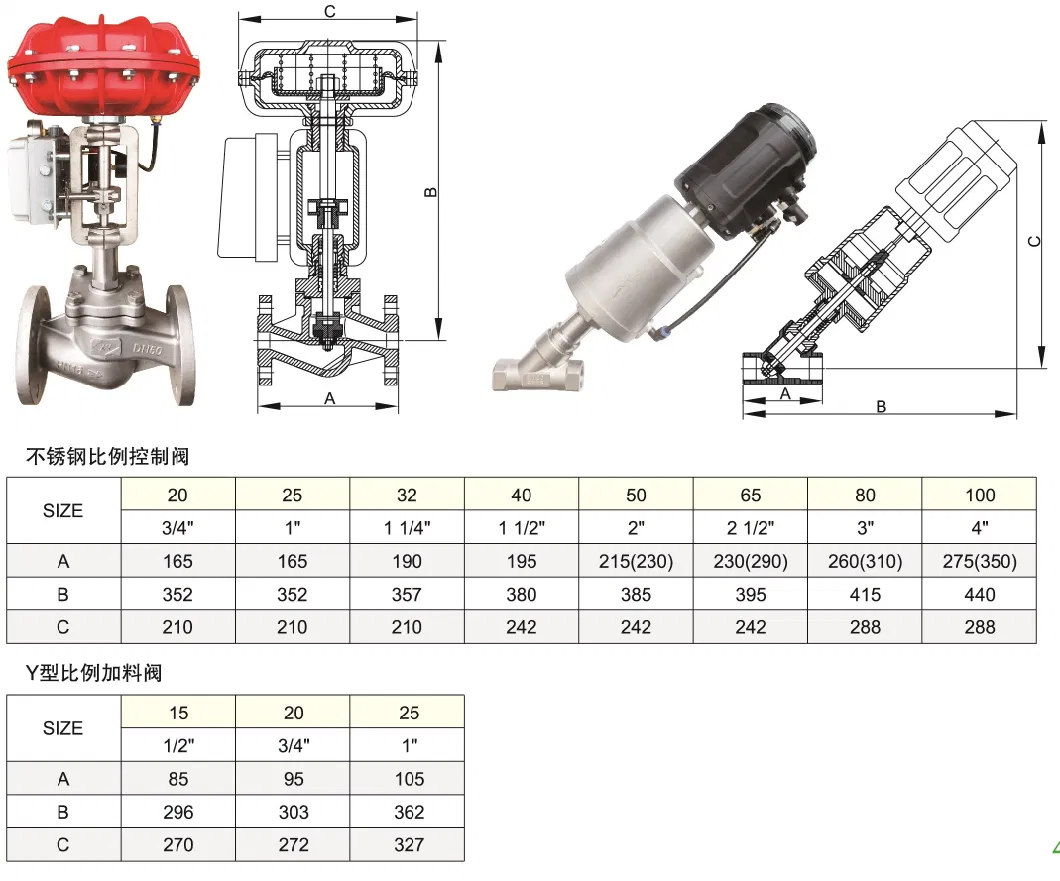

1.Specification
| Body Material | SS304, SS316, |
| Seat Material | EPDM. Matel |
| Disc Material | SS304 |
3.Packing & Delivery

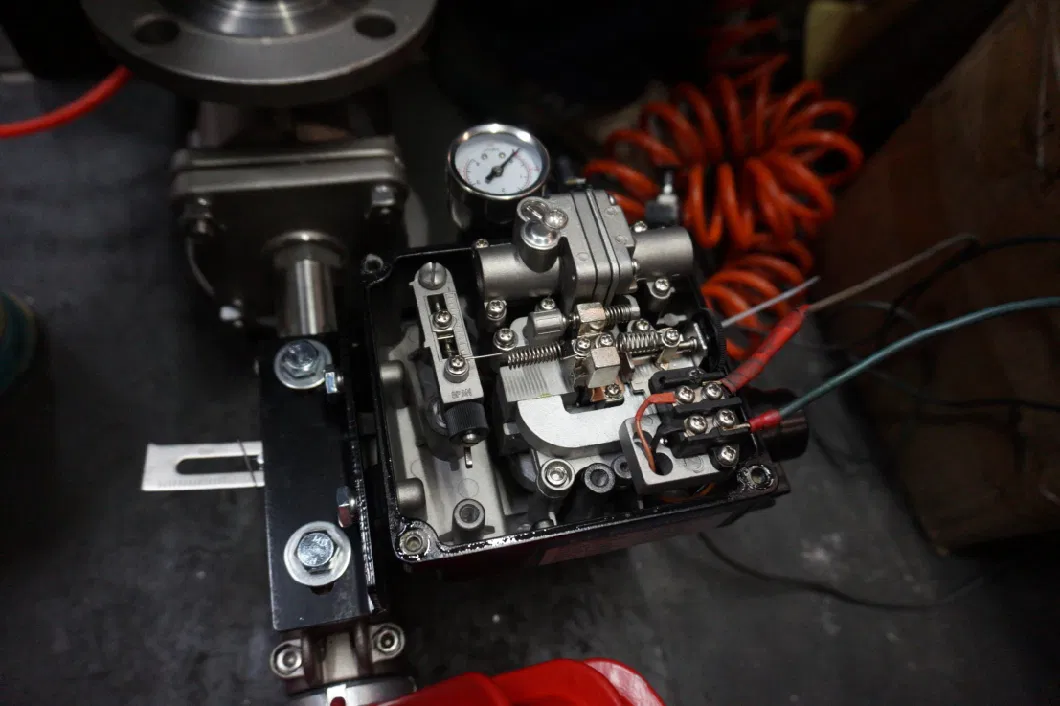

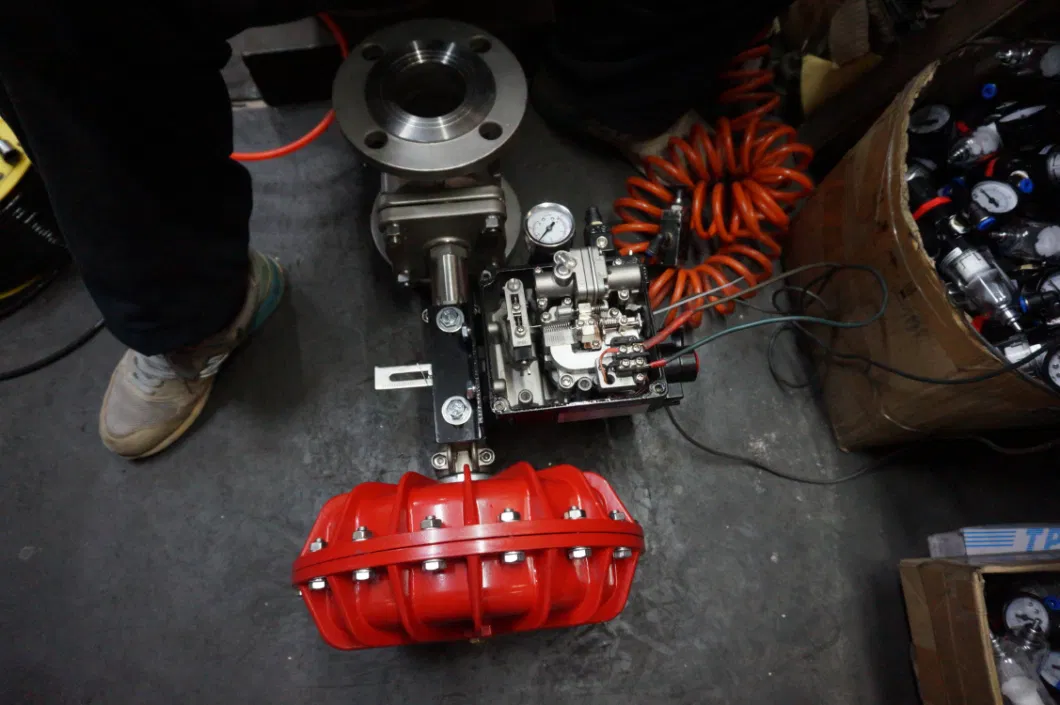

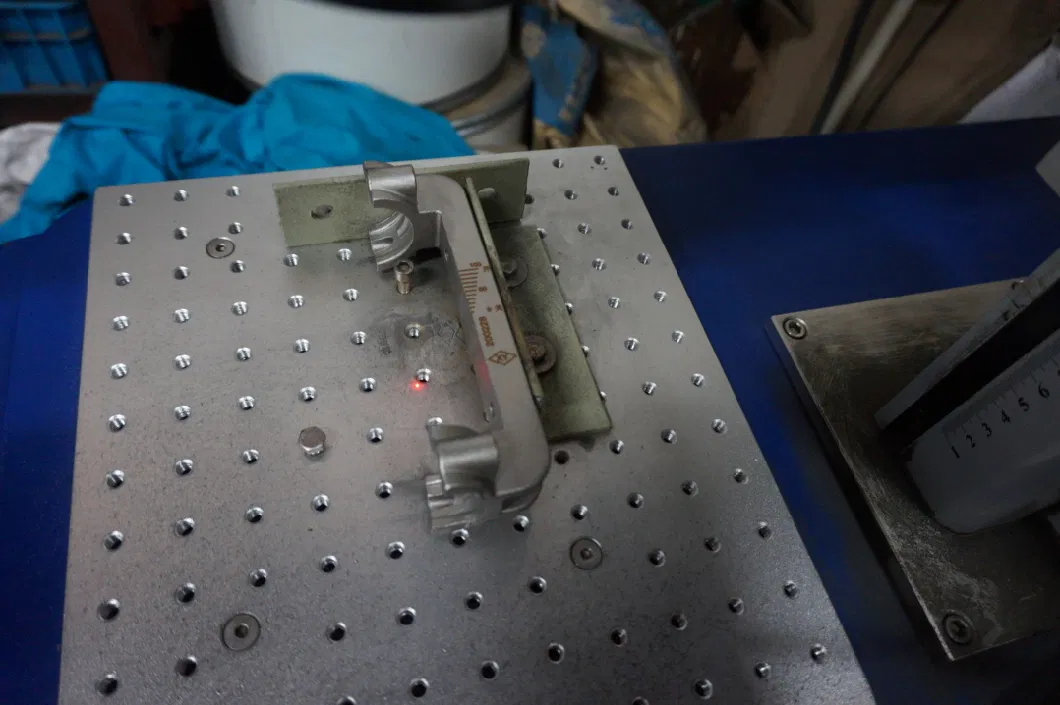

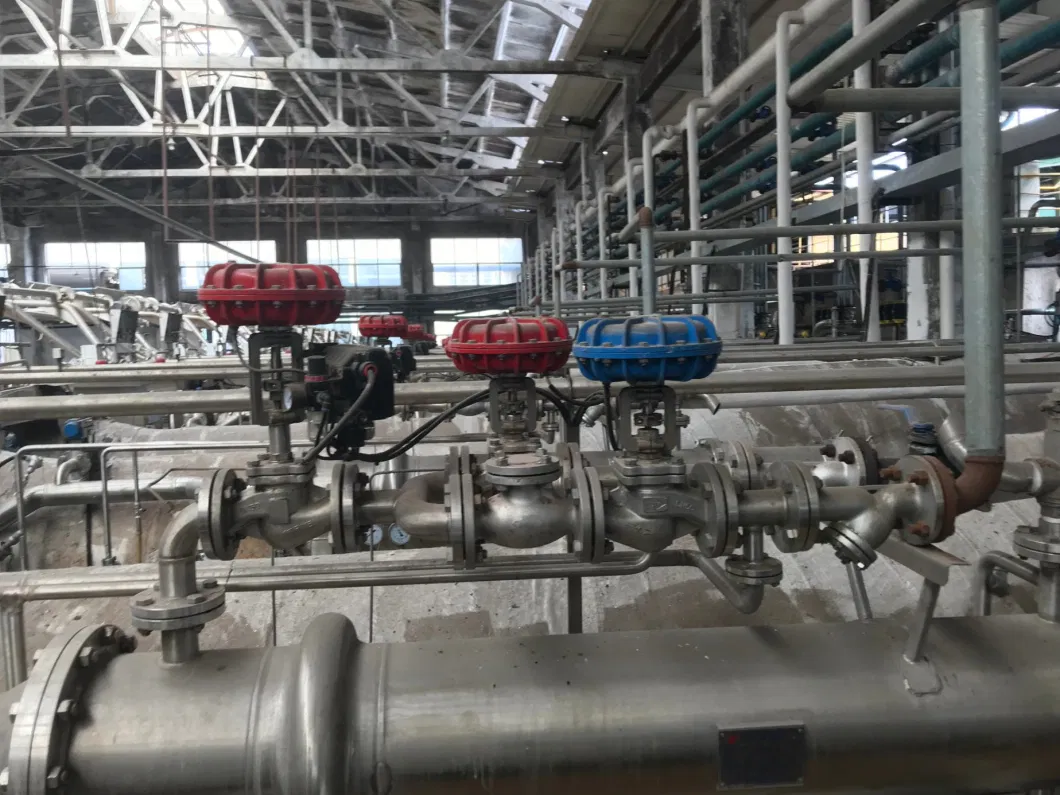

4.Working photos

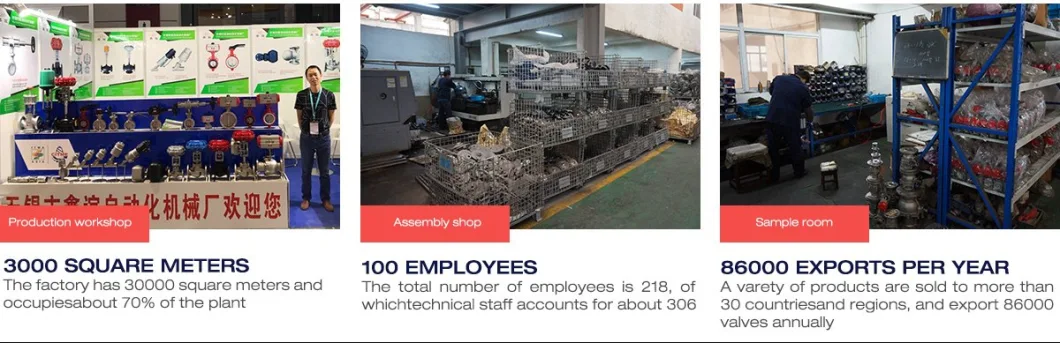

5.Company Profie
Wuxi Xinyi Automatic Machinery Factory(original Xishan Xinyi Regulating Valve Factory) is a high-tech enterprise integrated with the research, exploration, design, development, manufacturing and operation of stainless steel vales and cast iron valves.
FAQ
Q1. How to place the order?
A1: You can send us email or inquiry at alibaba directly.
Q2: Can you provide the free samples?
A2:Yes, the free samples is available. You just need to pay the freight cost.
Q3: Can I have my own customized product?
A3: Yes, your customized requirements for color, size, package, mark, etc.
Q4. Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How long is your delivery time?
A5: Generally it is 10-20 days if the goods are in stock. Customized goods need to negotiate delivery.
