Basic Info.
Model NO.
OHQ
Size
03-200
Largest Torque
2000nm
Rotate Range
0°-270°
Voltage
380V/220V/110V AC or 24V/110V DC
Color
Yellow/Blue
Transport Package
Shrink Film+Carton+Plywood Case
Specification
CE, ISO9001
Trademark
Autorun
Origin
Wenzhou, China
HS Code
853650000
Production Capacity
200, 000/Year
Product Description

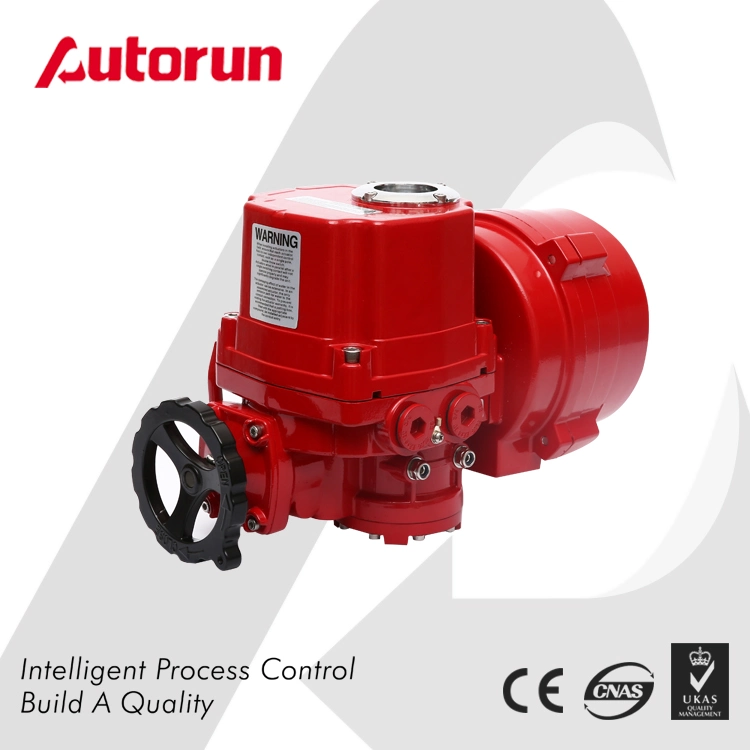

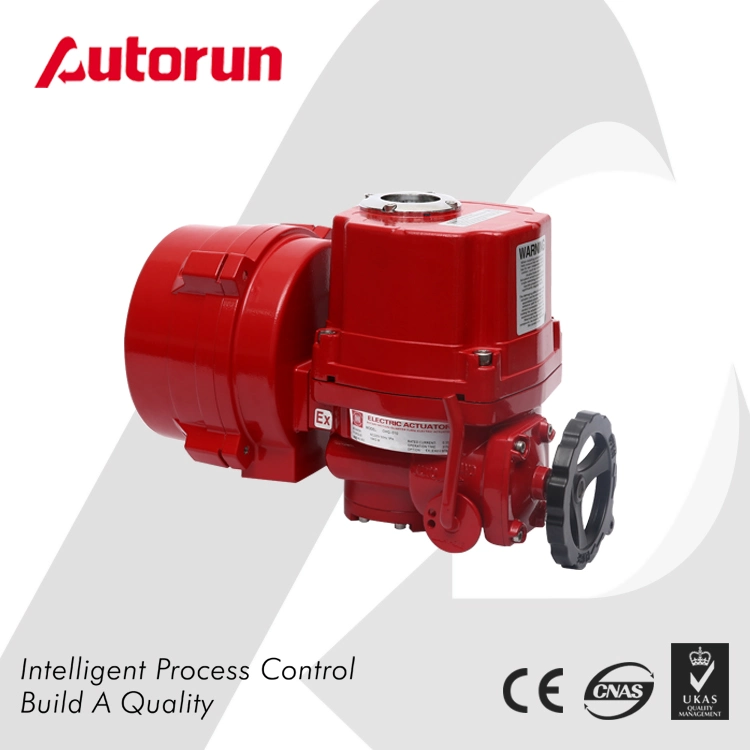

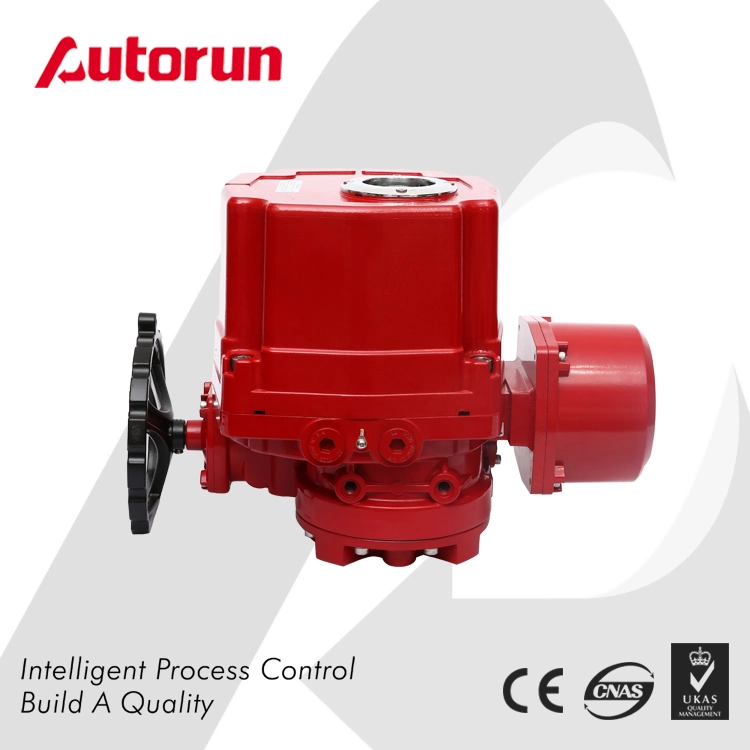

Explosion Proof Intelligent Electric Actuator
Introduction
'OHQ' series electric actuator is used for controlling valves of 0°-270° rotation and other similar products, such as butterfly valve, ball valve, damper, flapper valves, cock valves, etc.. It is widely used in petroleum, chemical, water treatment, shipping, paper making, power plants, heating, light industry and other industries. It can be drived by 380V/220V/110V AC power or 24V/110V DC power. Control signal can be 4-20mA current signal or 0-10V voltage signal. It can move the valve to desired position, realize automatic control. The maximum output torque is up to 2000Nm.
Specifications
Introduction
'OHQ' series electric actuator is used for controlling valves of 0°-270° rotation and other similar products, such as butterfly valve, ball valve, damper, flapper valves, cock valves, etc.. It is widely used in petroleum, chemical, water treatment, shipping, paper making, power plants, heating, light industry and other industries. It can be drived by 380V/220V/110V AC power or 24V/110V DC power. Control signal can be 4-20mA current signal or 0-10V voltage signal. It can move the valve to desired position, realize automatic control. The maximum output torque is up to 2000Nm.
Specifications
| Torque Range: 7-2000Nm |
| Motion Range: 0-270° , 0-90° |
| Ambient Temp.: -30º C~+60º C |
| Working Pressure: 0-4.0Mpa (40Bar) |
| Open/Close Time: 7S-100S |
| Number Of Wires: 2-7 Wires |
| Actuator Body: Aluminium Alloy |
| Protection Class: IP67,IP68 |
| Voltage: 24V DC, 110V AC, 220V AC, 380V AC |
| Type: On-off, Modulating (Regulating), Passive Contact |
| Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400) |
